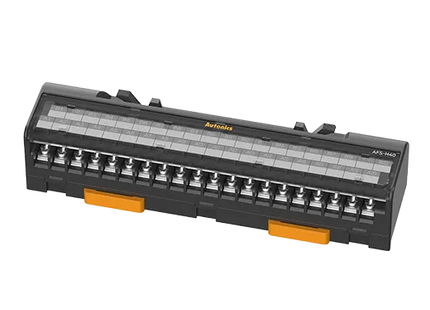

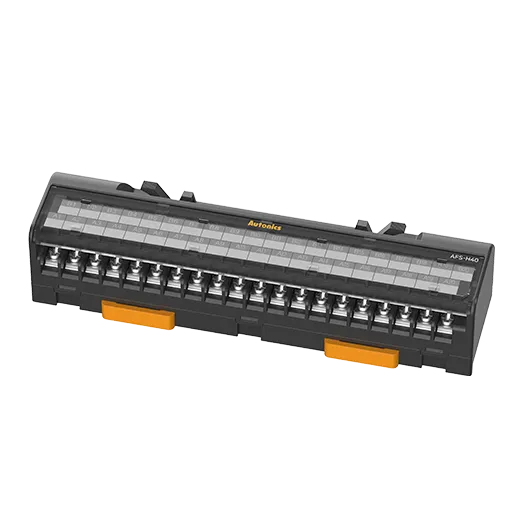

Name: MODEL- AFS-H40
Brand: Industry Baba
Price: 1500.0 INR
Availability: InStock

MODEL- AFS-H40

Description


Number of connector pins	40-pin
Number of terminal	40 EA
Terminal pitch	7.0mm
Material	CASE & BASE: Modified Polyphenylene Oxide, TERMINAL PIN: Brass
Weight	Approx. 175g (approx. 133g)
Rated voltage	≤125VDC , 125VAC~ 50/60Hz
Rated current	≤1A
Insulation resistance	≥ 1,000 MΩ (500 VDC megger)
Dielectric strength	2,700 VAC~ 50/60 Hz for 1 minute
Environment_Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH

Product form

Data sheet Print Number of connector pins 40-pin Number of terminal 40 EA Terminal pitch 7.0mm Material CASE & BASE: Modified... Read more

Rs. 1,500.00 Excl. VAT


Number of connector pins	40-pin
Number of terminal	40 EA
Terminal pitch	7.0mm
Material	CASE & BASE: Modified Polyphenylene Oxide, TERMINAL PIN: Brass
Weight	Approx. 175g (approx. 133g)
Rated voltage	≤125VDC , 125VAC~ 50/60Hz
Rated current	≤1A
Insulation resistance	≥ 1,000 MΩ (500 VDC megger)
Dielectric strength	2,700 VAC~ 50/60 Hz for 1 minute
Environment_Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
