Description
Manufacturer: EGE Elektronik
Model: SZA 400 EX-24
Condition: Used. Comes in non-original packaging. This flow controller is in good condition with minor scuffs and scratches from previous use, but nothing that would affect functionality.
The photos show the exact item(s) the buyer will receive.
Notes: This flow controller was removed from a decommissioned machine and has not been tested since its removal.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:

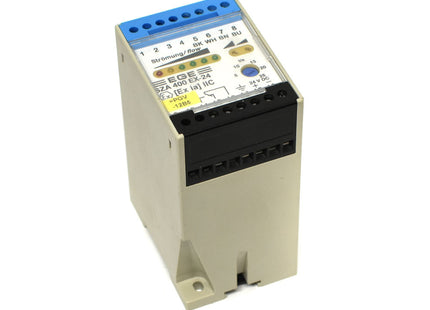

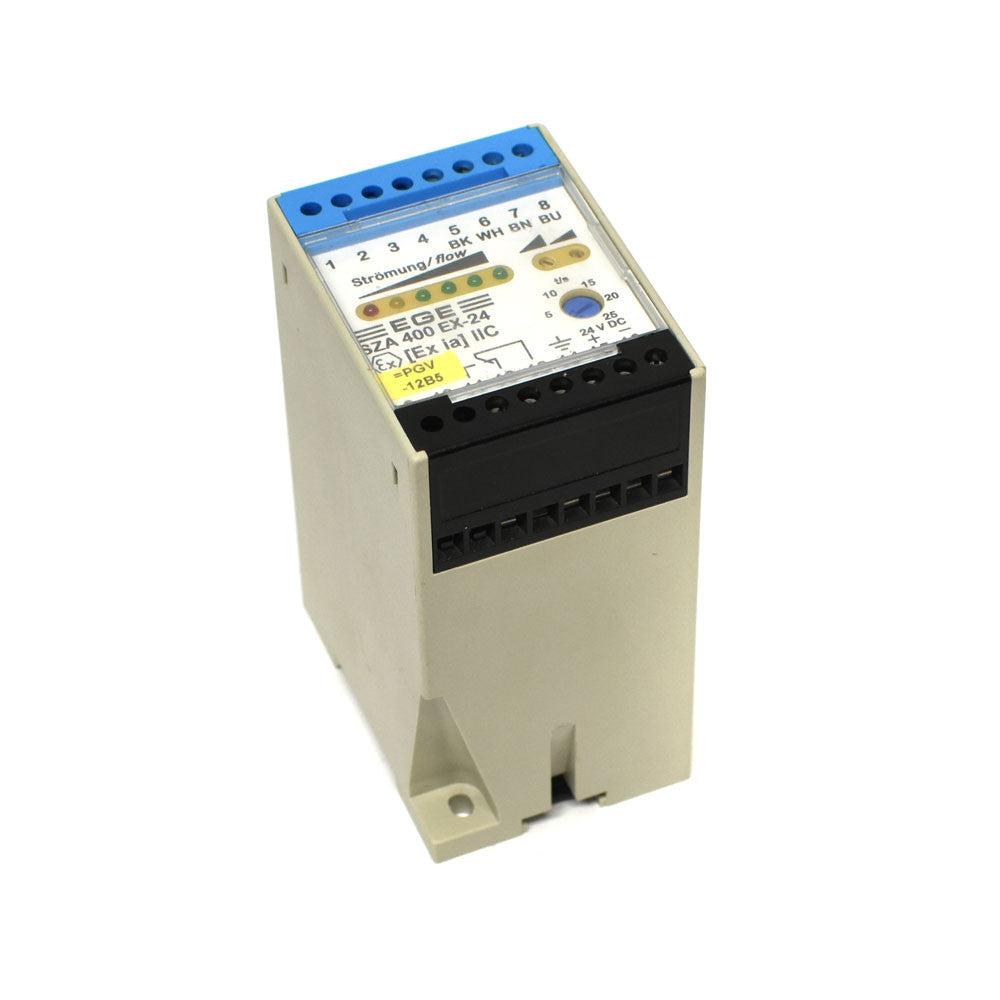

- (1) EGE Elektronik SZA 400 EX-24 Flow Controller/Amplifier
Specifications:
- Manufacturer: EGE-Elektronik Spezial-Sensoren GmbH
- Model: SZA 400 EX-24
- Description: Flow Controller / Amplifier
- Supply Voltage: 24 V DC ± 15%
- Relay Output: 250 V AC, 4 A
- DC Output Rating: 60 V DC, 0.5 A
- ATEX / Explosion Protection: [Ex iA] IIC, certificate TÜV 96 ATEX 1097
- Maximum Ambient Temperature (Tmax): 60 °C
- Intrinsic Safety Output (Uo): 12.6 V
- Intrinsic Safety Current (Io): 200 mA
- Internal Resistance (Ri): 68.5 Ω
- Capacitance (Co): 170 nF
- Inductance (Lo): 0.5 mH
- Rated for Cos φ ≥ 0.7 / L/R ≤ 200 ms
