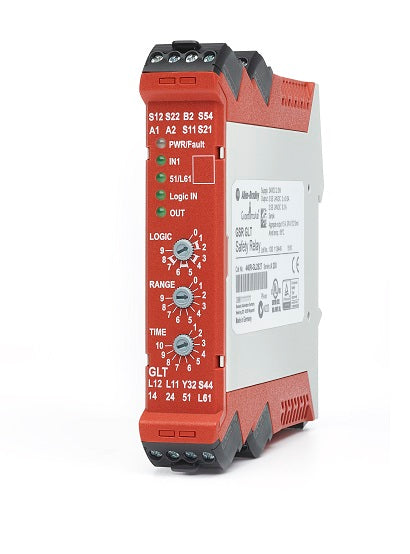

Name: MODEL-ALLEN BRAIDELY RELAY---440R-GL2S2T
Brand: Industry Baba
Price: 24190.0 INR
Availability: InStock

MODEL-ALLEN BRAIDELY RELAY---440R-GL2S2T

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Number of outputs, safety related, undelayed, with contact	0
Number of outputs, safety related, delayed, with contact	0
Number of outputs, signalling function, undelayed, with contact	0
Number of outputs, safety related, undelayed, semiconductors	2
Number of outputs, safety related, delayed, semiconductors	2
Number of outputs, signalling function, undelayed, semiconductors	1
Number of outputs, signalling function, delayed, semiconductors	0
With start input	False
With muting function	False
Voltage type for actuating	DC
Rated control supply voltage at DC	24 V
Model	Basic device
Type of electric connection	Screw connection
Evaluation inputs	Other
Power consumption	2 W
Operating voltage range	20.4
Configurable logic	Lock control + time delay
Continuous safety output current	0.5 A
Wire size	0.2...2.5 mm² (24...14 AWG)
Number of outputs, signalling function, delayed, with contact	0
With feedback circuit	True
Suitable for monitoring of magnetic switches	True
Suitable for monitoring of proximity switches	True
Suitable for monitoring of emergency-stop circuits	True
Suitable for monitoring of optoelectronic protection equipment	True
Suitable for monitoring of position switches	True
Suitable for monitoring of tactile sensors	True
Suitable for monitoring of valves	True
Surge auxillary output current duration, max	5 ms
Surge safety output current duration	5 ms
Special output surge safety output current	3 A
Continuous auxiliary output current	50 mA
Special output output current duration	10 µs
Surge auxiliary output current	700 mA
Surge safety output current	1.5 A
Special output continuous safety output current	0.3 A
Aggregate current of outputs per module	1.8 A
Other input	SWS input
Other output	SWS output
