Ambient Temperature
|
Operating & Storage: -10 to +55℃ Each (No Icing or Condensation)
|
Type of Product
|
Proximity Sensor
|
Model No
|

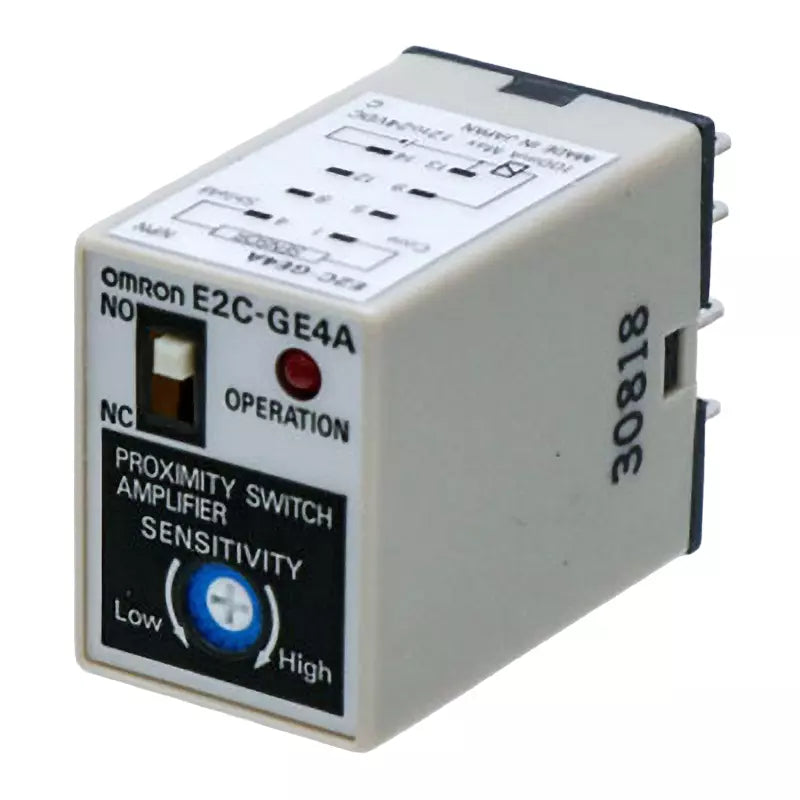

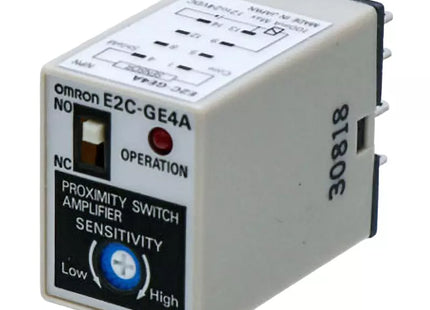

E2C-GE4A
|
Weight
|
Approx. 20 g (Packed)
|
Country of Origin
|
JAPAN
|
Type
|
Amplifier unit
|
Detection Distance
|
(Adjustment Range) 20% or More of The Rated Detection Distance mm, 4-Turn Potentiometer
|
Monotaro ID
|
39043471
|
Operation Mode
|
NO / NC Switch Switching
|
Ambient Humidity
|
Operation & Storage: 35 to 85% RH Each (No Condensation)
|
Included Components
|
Instruction Manual
|
Influence of Voltage
|
± 1% or less of sensing distance at rated power supply voltage within the range of rated power supply voltage ± 20%
|
Connection Type
|
Terminal block type
|
Insulation Resistance
|
Between live parts and case: 50 MΩ or more (at 500 VDC)
|
Power Supply Voltage
|
DC12 ~ 24 V Ripple (pp) 10% or less
|
Vibration Resistance
|
10 ~ 25 Hz 2 mm double amplitude 2h for each direction of X, Y, Z
|
Operating Voltage Range
|
DC10～30 V
|
Current Consumption
|
25 mA or less
|
Influence of Temperature
|
10% max. Of sensing distance at + 23 ° C within the temperature range of -10 to + 55 ° C
|
Control Output
|
Solid State: NPN Output Resistance 4.7kΩ, Output: 100 mA or Less (DC40V or Less)
|
Indicator Lamp
|
Detection Display (Red) (Operation)
|
Shock Resistance
|
100 m/s²
|
Differential Distance
|
Hysteresis Fixed (10% or less of detection distance)
|
Withstand Voltage
|
Between Live Parts & Case: AC1000 V 50/60 Hz @1 min
|
Residual voltage (V)
|
1.5 V or Less
|
Name of Manufacturer/Packer/Importer
|
Omron Corporation
|
