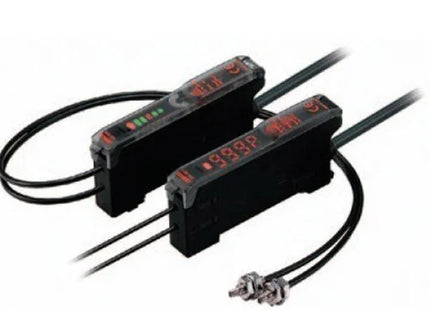

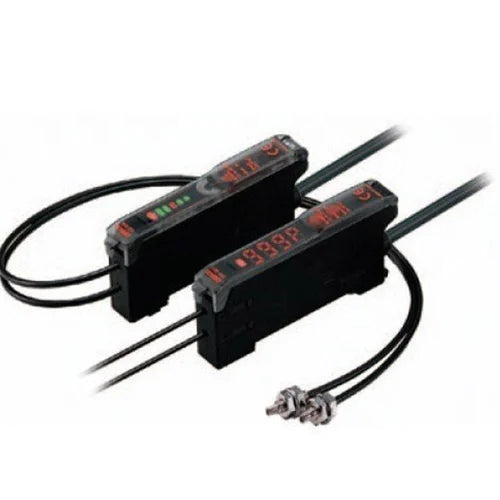

MODEL- AMPLIFIER MAKE OMRON MODEL E3X-NA11

Description

Power 24V
Type NPN
Channel 1
Model Name/Number E3X-NA11
Brand Omron
Color Black
Weight 100gm
Response Time 0.2ms
Size/Dimension 10x64.3x31.5 mm
Cable Length 2m
Self-explanatory LEDbar displays of light levels.
  • The previous manual type used the stability and incident level indicators to display the light level change, which was difficult to understand at a glance. The E3X-NA uses the LED bars to display the light level, ensuring the light level change at a glance.
Same "Wire-saving" Connector as E3X-DA-N
  • OMRON's original wiring-saving connector, which was inherited from the digital fiber amplifier E3X-DA-N, allows connection of up to 16 units
Optical Communications to Prevent Mutual Interference
  • Optical communication between amplifiers prevents mutual interference. Up to 5 fiber heads can be installed close.
Precautions
  • The window provided in the side face of the unit is a communication window for prevention of mutual interference when it is connected with the other unit. Note that the optional Mobile Console E3X-MC11 cannot be used. When the incident level of the sensor is excessive, mutual interference prevention may not be activated. At that time, make adjustment with the sensitivity adjuster. When the unit is used with the E3X-DA-N series, mutual interference prevention is not activated

MODEL- AMPLIFIER MAKE OMRON MODEL E3X-NA11

Product form

Power 24V Type NPN Channel 1 Model Name/Number E3X-NA11 Brand Omron Color Black Weight 100gm Response Time 0.2ms Size/Dimension 10x64.3x31.5... Read more

Rs. 2,428.40 Excl. VAT

    Description

    Power 24V
    Type NPN
    Channel 1
    Model Name/Number E3X-NA11
    Brand Omron
    Color Black
    Weight 100gm
    Response Time 0.2ms
    Size/Dimension 10x64.3x31.5 mm
    Cable Length 2m
    Self-explanatory LEDbar displays of light levels.
    • The previous manual type used the stability and incident level indicators to display the light level change, which was difficult to understand at a glance. The E3X-NA uses the LED bars to display the light level, ensuring the light level change at a glance.
    Same "Wire-saving" Connector as E3X-DA-N
    • OMRON's original wiring-saving connector, which was inherited from the digital fiber amplifier E3X-DA-N, allows connection of up to 16 units
    Optical Communications to Prevent Mutual Interference
    • Optical communication between amplifiers prevents mutual interference. Up to 5 fiber heads can be installed close.
    Precautions
    • The window provided in the side face of the unit is a communication window for prevention of mutual interference when it is connected with the other unit. Note that the optional Mobile Console E3X-MC11 cannot be used. When the incident level of the sensor is excessive, mutual interference prevention may not be activated. At that time, make adjustment with the sensitivity adjuster. When the unit is used with the E3X-DA-N series, mutual interference prevention is not activated
