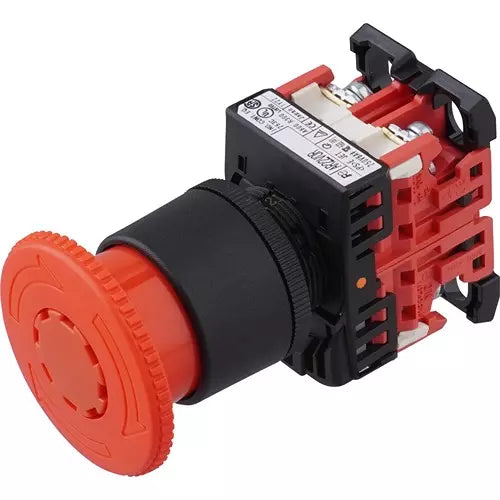

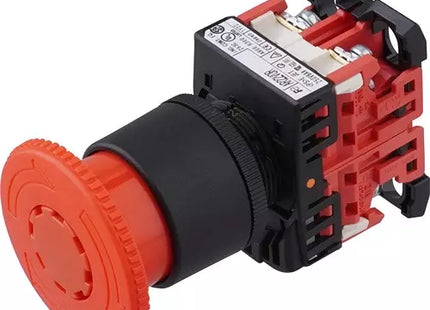

Model No
|
AR22V0R-02R
|
Type of Product
|
Push Button Switch
|
Insulation Resistance
|
Between Live Part & Ground / Between Different Polarity Live Parts: 100 MΩ or more (at 500 VDC Megger)
|
Protection Class
|
IP65 (Oil-proof Type)
|
Type
|
Non-Illuminated Type
|
Series
|
AR22V0R
|
Terminal Screw
|
M3.5 Plus/Minus Screw with Square Washer (Self-Lifting Type)
|
Return Function
|
Turn Reset
|
Withstand Voltage
|
Between Live Part & Ground / Between Different Polarity Live Parts: 2500 VAC for 1 min
|
Monotaro ID
|
39119228
|
Storage Temperature
|
-40～+80°
|
Rated Insulation Voltage
|
AC/DC600 V
|
Button Color
|
Red
|
Mounting Dimensions (mm)
|
Φ22.3 mm・ Φ25.5 mm Shared
|
Contact Configuration
|
2b
|
Frame
|
Round frame
|
Operation Ambient Temperature
|
-20~+70° (No Freezing or Condensation)
|
Short Circuit Protection Device
|
Fuse 15A
|
Rated Impulse Withstand Voltage (kV)
|
6 kV
|
Mechanical Durability
|
100000 times or more
|
Pollution Degree (Environment to Use)
|
3
|
Electrical Durability
|
500000 times or more (at AC220V 6A) 1 million times or more (at AC220V 3A)
|
Country of Origin
|
Japan
|
Name of Manufacturer/Packer/Importer
|
Fuji Electric Co Ltd
|
