Application per Directive 2014/34/EU (ATEX)
Gas: II 2G Ex h IIC T4-T1 Gb X
according to DIN EN ISO 80079-36 :2016,
DIN EN ISO 80079-37:2016
Gas: II 3G Ex h IIC T4-T1 Gc X
according to DIN EN ISO 80079-36 :2016,
DIN EN ISO 80079-37:2016
Features

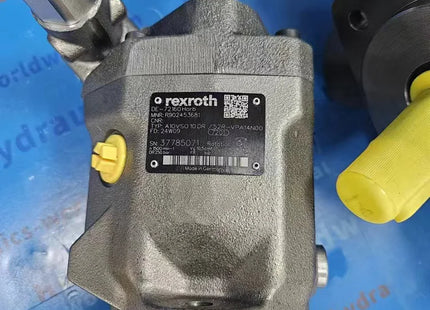

Variable displacement pump with axial piston rotary
group of swashplate design for hydrostatic drives
in open circuit
Flow is proportional to the drive speed and
displacement.
Flow can be infinitely varied by controlling the
swashplate angle.
Hydrostatically unloaded cradle bearing
Low noise level
2 leakage ports
Excellent suction characteristics
Long service life
Good power to weight ratio
Versatile controller range
Short control time
Through drive possibility to pump the same nominal size
