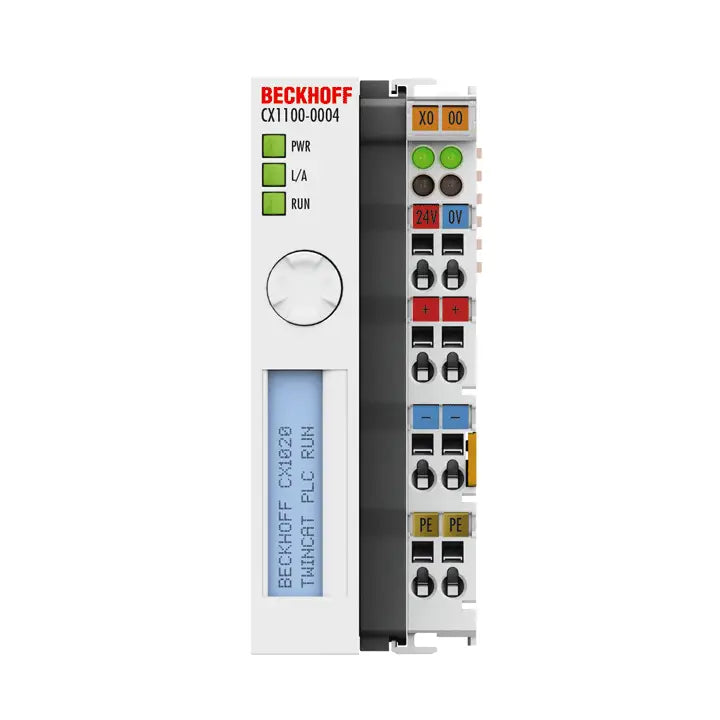

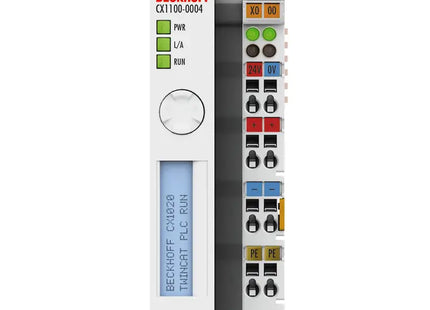

MODEL- BECKHOFF CX1010-0111 CX1100-0004 CX1010-NO31 MODEL NO- COM1-RS-422/485

Description

Technical data CX1100-0004
Power supply 24 V DC (-15%/+20%)
Current supply E-bus 2 A
Current supply K-bus –
Connection type spring-loaded technique (adapter terminal)
NOVRAM 8 kbytes
Display FSTN display 2 lines x 16 characters of text, illuminated
Diagnostics LED 1 x PWR, 1 x L/A, 1 x Run
Max. power consumption 3.5 W
Dimensions (W x H x D) 40 mm x 100 mm x 91 mm
Weight approx. 250 g
Storage temperature -25…+85°C
Operating temperature 0…55°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protection rating IP20
Approvals/markings CE, UL

MODEL- BECKHOFF CX1010-0111 CX1100-0004 CX1010-NO31 MODEL NO- COM1-RS-422/485

Product form

Technical data CX1100-0004 Power supply 24 V DC (-15%/+20%) Current supply E-bus 2 A Current supply K-bus – Connection type... Read more

Rs. 150,000.00 Excl. VAT

  • Shipped today? Order within: Jul 08, 2026 17:00:00 -0400

    Description

    Technical data CX1100-0004
    Power supply 24 V DC (-15%/+20%)
    Current supply E-bus 2 A
    Current supply K-bus –
    Connection type spring-loaded technique (adapter terminal)
    NOVRAM 8 kbytes
    Display FSTN display 2 lines x 16 characters of text, illuminated
    Diagnostics LED 1 x PWR, 1 x L/A, 1 x Run
    Max. power consumption 3.5 W
    Dimensions (W x H x D) 40 mm x 100 mm x 91 mm
    Weight approx. 250 g
    Storage temperature -25…+85°C
    Operating temperature 0…55°C
    Relative humidity 95%, no condensation
    Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
    EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
    Protection rating IP20
    Approvals/markings CE, UL
