Main function
Sensor (Proximity; inductive)
Product series / family name
Industrial sensors > Inductive
Sub-range name
BES 516 series
Functions
Inductive proximity sensor / switch
Supply voltage (DC)
7.7-9Vdc
Frequency
1000Hz / 1kHz max. switching frequency

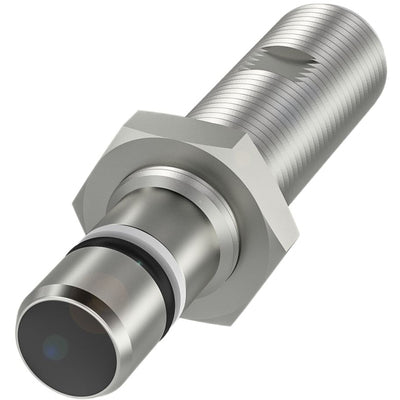

Shape
Cylindrical / barrel fully threaded body
Rated insulation voltage (Ui)
(Vdc) 75 V
Connection type
Pre-equipped with a 4-pin M12 A-coded male connector
Mounting mode
Flush mounting with M12 nut
Digital outputs
1 x digital output (NAMUR)
Degree of protection
IP68
Material
Stainless steel housing
POM (Polyoxymethylene) sensing surface
Ambient air temperature for operation
-13...+158°F / -25...+70 °C
Customs Tariff Number
8536509065
Order code / Manufacturer SKU
BHS0034
Manufacturer product status
Commercialized
Equivalent to
BES516300S266S4
Compliant with standard(s)
CE
WEEE
EAC
CE Ex II 2G EPL Gb (ATEX)
Degree of pollution
Contamination scale 3
Benefits
Inductive sensors for hazardous areas benefits
- For zones 0 / 1 / 2 / 20 / 21 and 22
- High-pressure rated to 500bar
- For use in a variety of temperature ranges
- With matching NAMUR switching amplifiers
- Non-contacting
- Media-resistant
- Impervious to contamination
