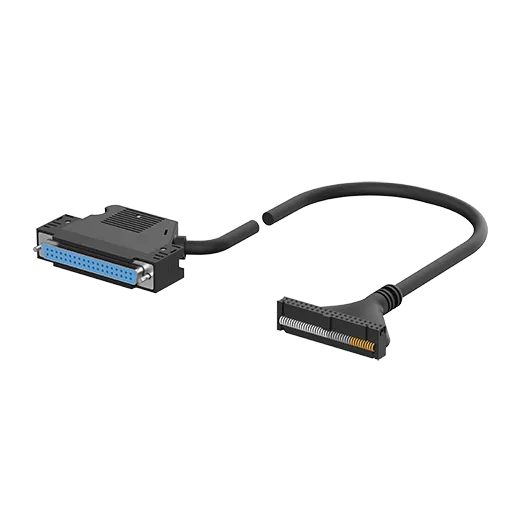

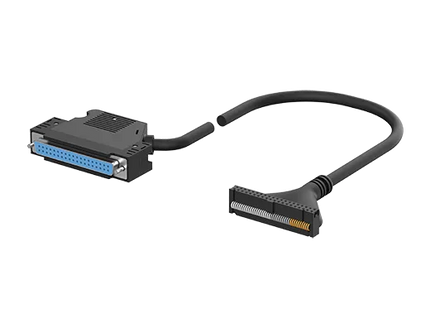

MODEL- CABLE CH40-FP020-1R AUTONICS

Description

Connector for PLC Fujitu 40pin socket
Connector for terminal block Hirose 40pin socket
Number of connector pins 40-pin
Applicable cable UL 20276 TWIST 40C
Conductor characteristics 7/0.127mm(AWG 28)×20P
Insulation diameter 0.12mm²
Cable diameter Ø7.2mm(40C)
Rated current ≤1A
Conductor resistance ≤0.223Ω/m
Insulation voltage 500VAC~ 50/60Hz for 1 min.
Insulation resistance ≥15MΩ/km
Environment_Ambient temperature -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 196g

MODEL- CABLE CH40-FP020-1R AUTONICS

Product form

Connector for PLC Fujitu 40pin socket Connector for terminal block Hirose 40pin socket Number of connector pins 40-pin Applicable cable... Read more

Rs. 2,167.26 Excl. VAT

  • Shipped today? Order within: Jul 02, 2026 17:00:00 -0400

    Description

    Connector for PLC Fujitu 40pin socket
    Connector for terminal block Hirose 40pin socket
    Number of connector pins 40-pin
    Applicable cable UL 20276 TWIST 40C
    Conductor characteristics 7/0.127mm(AWG 28)×20P
    Insulation diameter 0.12mm²
    Cable diameter Ø7.2mm(40C)
    Rated current ≤1A
    Conductor resistance ≤0.223Ω/m
    Insulation voltage 500VAC~ 50/60Hz for 1 min.
    Insulation resistance ≥15MΩ/km
    Environment_Ambient temperature -15 to 55℃, storage: -25 to 65℃
    Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
    Weight Approx. 196g
