Model No
|

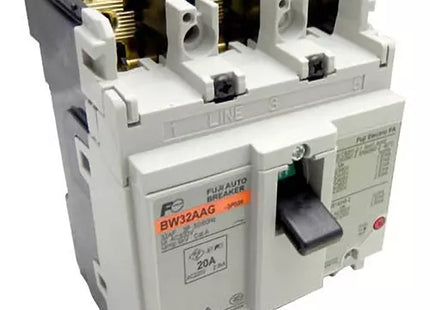

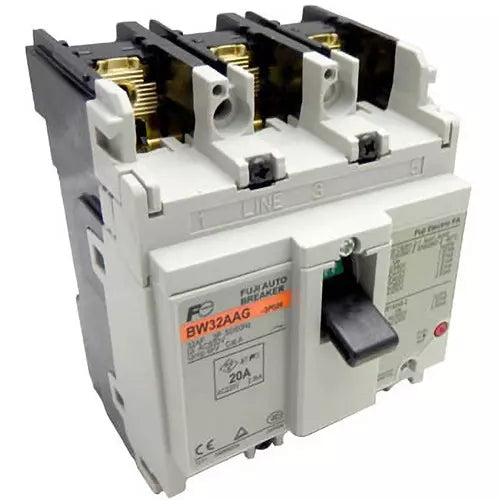

BW32AAG-3P020
|
Type of Product
|
Automatic Circuit Breaker
|
Standard
|
JIS C 8201-2-1, IEC60947-2, EN60974-2 (CE mark), gB14048.2 (CCC certification)
|
Outer Dimension d (mm)
|
84 mm
|
Rated Insulation Voltage
|
AC500 V
|
Frame (AF)
|
32 AF
|
Type
|
Instant Fixed Type For General Wiring
|
Included Components
|
Body Mounting Screws (M4 x 55) x 2, Terminal Screws (M5 x 14) x 6
|
Rated Current
|
20 A
|
Outer Dimension c (mm)
|
60 mm
|
Trip button
|
Included
|
Monotaro ID
|
35105707
|
Rated Breaking Capacity
|
IEC60947-2/JIS C 8201-2-1/EN60947-2：(AC440/415/400/380V)1.5/1 kA ・(AC230V)2.5/2 kA, GB/T14048.2：(AC400V)1.5/1 kA ・(AC230V)2.5/2 kA
|
Connection Type
|
Surface Type (for crimping and bar terminals)
|
Model Name
|
BW32AAG
|
No. of Pole
|
3P3E
|
Weight
|
500 g
|
Outer Dimension b (mm)
|
100 mm
|
Outer Dimension a (mm)
|
75 mm
|
Protection
|
Line Protection
|
Country of Origin
|
JAPAN
|
Name of Manufacturer/Packer/Importer
|
Fuji Electric Co Ltd
|
