Description
DELIVERY PERIOD : 1-2 WEEKS

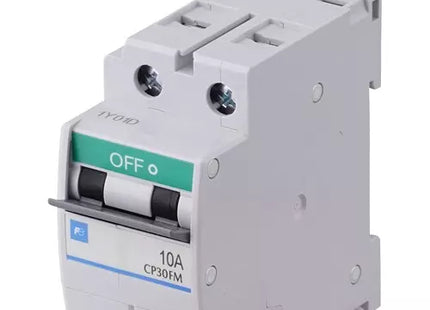

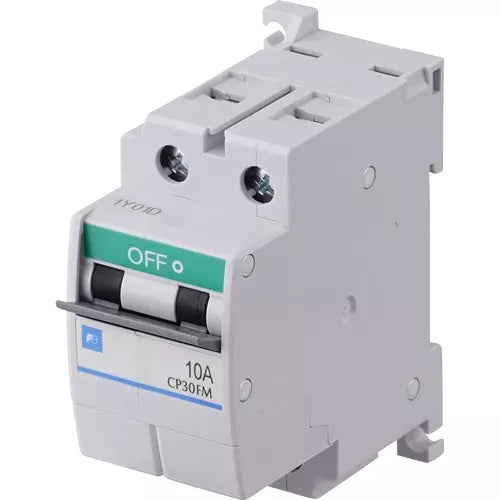

The fully revised CP-F series circuit protector model.
Finger-protecting (IP20 equivalent) construction for the main circuit with no terminal cover required.
Standard product that conforms to vital specifications both in Japan and abroad.
-
- Rated block capacity When AC 250 V
-
2.5
-
- Rated block capacity voltage conditions besides AC 250 V/DC 60 V
-
Available
-
- Number of Poles
-
3
-
- Rated Voltage
-
AC250V
-
- Rated Current
-
3 ～ 15
-
- Operating properties
-
Medium speed
-
- Polarity presence
-
Available
-
- Representative Standard
-
PSE / CE / UL / TUV / CCC / CSA
-
- Dimension height
-
71
-
- Dimension width
-
17.5 ～ 52.3
-
- Dimension depth
-
75.3
-
- Mounting Method
-
Both M4 screw / IEC35mm rail
-
- Included equipment
-
NA
-
- Applicable circuit
-
Only AC
-
- Main terminal
-
Screw terminal
-
- Delay equipment
-
NA
-
- Rated Breaking Capacity
-
-
-
- Contact Configuration
-
-
