Light diffuser : PMMA 4 mm thick
Housing material : Heady Duty Extruded Anodised Aluminium Housing
Mounting arrangement : "L" Clamp, rotatable mounting to change Light Focus angle
LED Type : LM 80 Approved , 2835 Package LED ,0.2 watt/LED & 0.5 watt/LED
LED Light Angle : 120 Deg
Light Colour Approx.: 6500 K
Luminaire Light Yeild : 110-120 Lumens / Watt
Colour Rendering Index (CRI) min : >80
Insulation resistance at 500 VDC : 1.3 X 104 Mega - Ohm
Operating temperature : -400C to +850C
Operating Life : 50,000 Hrs
Standard Confirmity : IEC 60947, IEC 60529, IEC 60068
Degree of Protection : IP 65
Parameters : 12W, 230 VAC

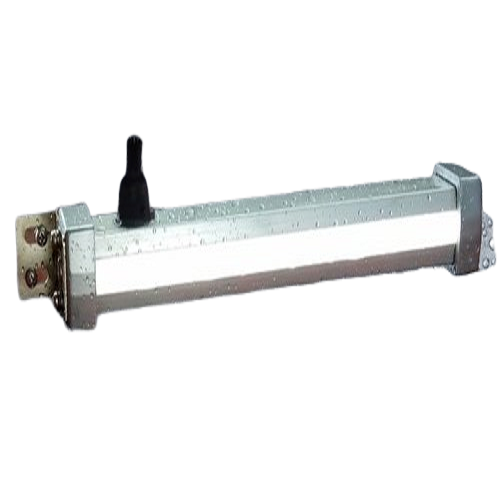

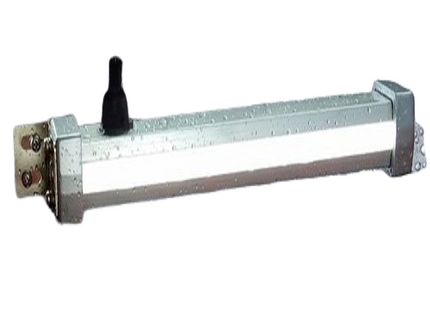

Model / Part No : CR-MLL-230-A-12W
Dimension In mm : : 385 X 35 X 35
(L XW X H) : 15.15" x 1.37" x 1.37" (inch)
APPLICATIONS
These lamps find wide application in Engineering,
Automobile, Process, Textile, Packaging, & more
• Heavy duty and light duty Machines.
• VMC / CNC Machines
• Areas of HighWorking Temperature.
• Areas of High Humidity.
• Inspection Tables.
• Work Benches.
• Cold Storages.
ADVANTAGES
Energy savings over CFL/PL tube fixtures.
Long life of 50,000 hours of continuous operation
Maintenance free working– saving your time and money
Suitable for wet, dry, oily & dusty environmental conditions
Direct connection to 230 VAC / 24 VDC without additional components
Designed to resist
