Description

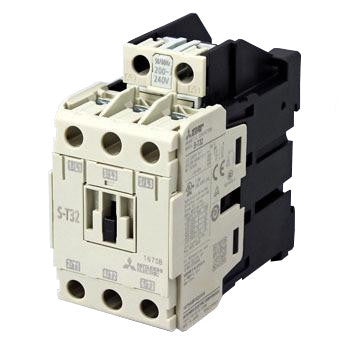

FA-MC: Magnetic Contactor
| Series |
MS-T SERIES MAGNETIC CONTACTOR |
| Type |
NON-REVERSING, AC OPERATED |
| Frame Size |
32 |
| Current Type |
AC TYPE |
| Coil Voltage (V) |
200-240 |
| Rated Current (A) |
3-PHASE AC690V: 12 |
| Rated Capacity (kW) |
3-PHASE AC220-240V: 7.5, 3-PHASE AC380-440V: 15, 3-PHASE AC690V: 11 |
| Rated Voltage (V) |
690 |
| Number of Poles |
3 |
| No of Auxiliary Contacts NO |
2 |
| No of Auxiliary Contacts NC |
2 |
| Frequency Range (Hz) |
50/60 |
| Min. Ambient Temperature (°C) |
-10 |
| Max. Ambient Temperature (°C) |
40 |
| Wiring |
SCREW-CLAMP |
| Design / Styling |
STANDARD |
| Compliant with Standard(s) |
EN60947-4-1, IEC60947-4-1, JIS C8201-4-1 |
| Electrical Durability (Load) |
100000(AT 30A;AC3;380-440VAC) |
| Mech. Durability (at no Load) |
10 000 000 OPERATIONS |
| Protection Class |
IP20 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
NON-COMPLIANT |
| UKCA |
COMPLIANT |
Product Dimensions & Weight
| Width (mm) |
43 |
| Height (mm) |
81 |
| Depth (mm) |
81 |
| Weight (kg) |
0,36 |
Product Packaging
| Cardboard (g) |
150 |
| Other paper (g) |
0 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
1 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
