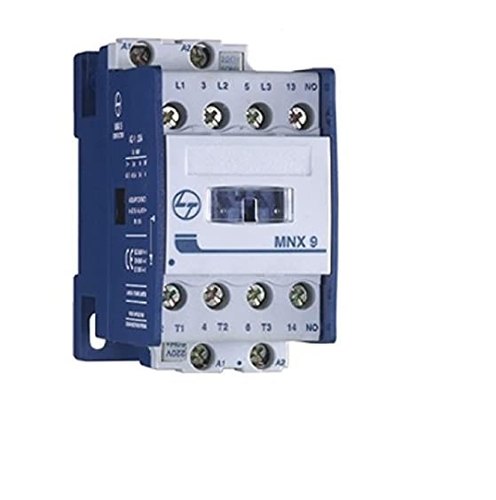

MODEL- CONTACTOR MNX9 L&T

Description

  • Ambient temperature–20 to 55 degree C
  • Mechanical Life (No. of operating cycles)-7200 Cy/hr
  • Rated impulse withstand voltage (Uimp)-8kV
  • Rated Insulation Voltage Ui (V)-690V
  • Conformance to Standards-IS/IEC 6094741, IEC 6094741
  • Coil Voltage-240 V AC
  • Rated operational current at 415V-9A
  • Discount Percentage-Between 0-10 %
  • No. of Poles-3P
  • Height(mm)-83
  • Width(mm)-45
  • Depth(mm)88
  • Rated kW-4kW
  • Rated making capacity-450A
  • Coil Operating band %Uc (Pick up)-65 – 120 %
  • Rated breaking capacity-200A
  • Mechanical Life-15 Million
  • Coil Operating band %Uc (Drop off)-35 – 50 %
  • Pick up VA consumption-68VA
  • Hold on VA consumption-11VA

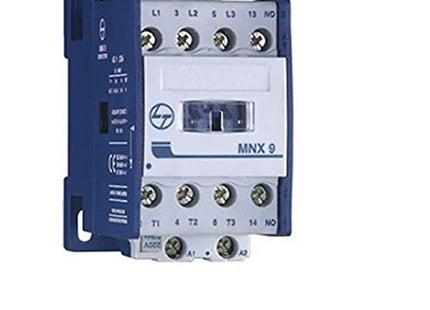

MODEL- CONTACTOR MNX9 L&T

Product form

Ambient temperature–20 to 55 degree C Mechanical Life (No. of operating cycles)-7200 Cy/hr Rated impulse withstand voltage (Uimp)-8kV Rated Insulation... Read more

Rs. 474.25 Excl. VAT

    Description

    • Ambient temperature–20 to 55 degree C
    • Mechanical Life (No. of operating cycles)-7200 Cy/hr
    • Rated impulse withstand voltage (Uimp)-8kV
    • Rated Insulation Voltage Ui (V)-690V
    • Conformance to Standards-IS/IEC 6094741, IEC 6094741
    • Coil Voltage-240 V AC
    • Rated operational current at 415V-9A
    • Discount Percentage-Between 0-10 %
    • No. of Poles-3P
    • Height(mm)-83
    • Width(mm)-45
    • Depth(mm)88
    • Rated kW-4kW
    • Rated making capacity-450A
    • Coil Operating band %Uc (Pick up)-65 – 120 %
    • Rated breaking capacity-200A
    • Mechanical Life-15 Million
    • Coil Operating band %Uc (Drop off)-35 – 50 %
    • Pick up VA consumption-68VA
    • Hold on VA consumption-11VA
