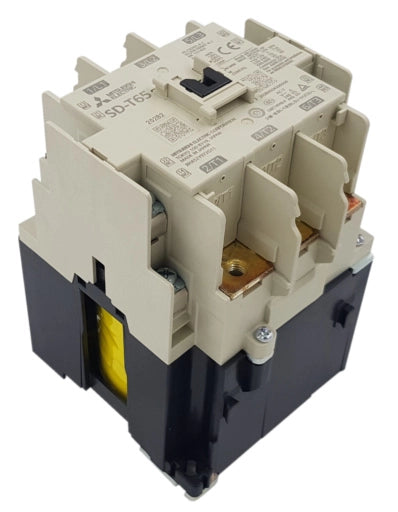

Name: Model-Contactor SD-T65 24 VDC-Make Mitsubishi
Brand: Industry Baba
Price: 11600.0 INR
Availability: InStock

Model-Contactor SD-T65 24 VDC-Make Mitsubishi

Description

Series	MS-T SERIES MAGNETIC CONTACTOR
Type	NON-REVERSING, DC OPERATED
Frame Size	65
Current Type	DC TYPE
Coil Voltage (V)	24
Rated Current (A)	3-PHASE AC690V: 38
Rated Capacity (kW)	3-PHASE AC220-240V: 18.5, 3-PHASE AC380-440V: 30, 3-PHASE AC690V: 30
Rated Voltage (V)	690
Number of Poles	3
No of Auxiliary Contacts NO	2
No of Auxiliary Contacts NC	2
Frequency Range (Hz)	50/60
Min. Ambient Temperature (°C)	-10
Max. Ambient Temperature (°C)	40
Wiring	SCREW-CLAMP
Design / Styling	STANDARD
Compliant with Standard(s)	EN60947-4-1, IEC60947-4-1, JIS C8201-4-1
Mech. Durability (at no Load)	5 000 000 OPERATIONS
Protection Class	IP20

Product form

Series MS-T SERIES MAGNETIC CONTACTOR Type NON-REVERSING, DC OPERATED Frame Size 65 Current Type DC TYPE Coil Voltage (V) 24... Read more

Rs. 11,600.00 Incl. VAT

Series	MS-T SERIES MAGNETIC CONTACTOR
Type	NON-REVERSING, DC OPERATED
Frame Size	65
Current Type	DC TYPE
Coil Voltage (V)	24
Rated Current (A)	3-PHASE AC690V: 38
Rated Capacity (kW)	3-PHASE AC220-240V: 18.5, 3-PHASE AC380-440V: 30, 3-PHASE AC690V: 30
Rated Voltage (V)	690
Number of Poles	3
No of Auxiliary Contacts NO	2
No of Auxiliary Contacts NC	2
Frequency Range (Hz)	50/60
Min. Ambient Temperature (°C)	-10
Max. Ambient Temperature (°C)	40
Wiring	SCREW-CLAMP
Design / Styling	STANDARD
Compliant with Standard(s)	EN60947-4-1, IEC60947-4-1, JIS C8201-4-1
Mech. Durability (at no Load)	5 000 000 OPERATIONS
Protection Class	IP20
