| UKCA |
COMPLIANT

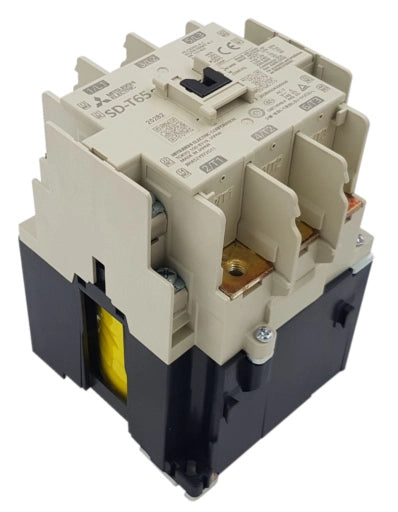

FA-MC: Magnetic Contactor
| Series |
MS-T SERIES MAGNETIC CONTACTOR |
| Type |
NON-REVERSING, DC OPERATED |
| Frame Size |
65 |
| Current Type |
DC TYPE |
| Coil Voltage (V) |
24 |
| Rated Current (A) |
3-PHASE AC690V: 38 |
| Rated Capacity (kW) |
3-PHASE AC220-240V: 18.5, 3-PHASE AC380-440V: 30, 3-PHASE AC690V: 30 |
| Rated Voltage (V) |
690 |
| Number of Poles |
3 |
| No of Auxiliary Contacts NO |
2 |
| No of Auxiliary Contacts NC |
2 |
| Frequency Range (Hz) |
50/60 |
| Min. Ambient Temperature (°C) |
-10 |
| Max. Ambient Temperature (°C) |
40 |
| Wiring |
SCREW-CLAMP |
| Design / Styling |
STANDARD |
| Compliant with Standard(s) |
EN60947-4-1, IEC60947-4-1, JIS C8201-4-1 |
| Mech. Durability (at no Load) |
5 000 000 OPERATIONS |
| Protection Class |
IP20 |
Product Dimensions & Weight
| Width (mm) |
88 |
| Height (mm) |
106 |
| Depth (mm) |
133 |
| Weight (kg) |
2,15 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
NON-COMPLIANT |
| UKCA |
COMPLIANT |
|
