Model No
|

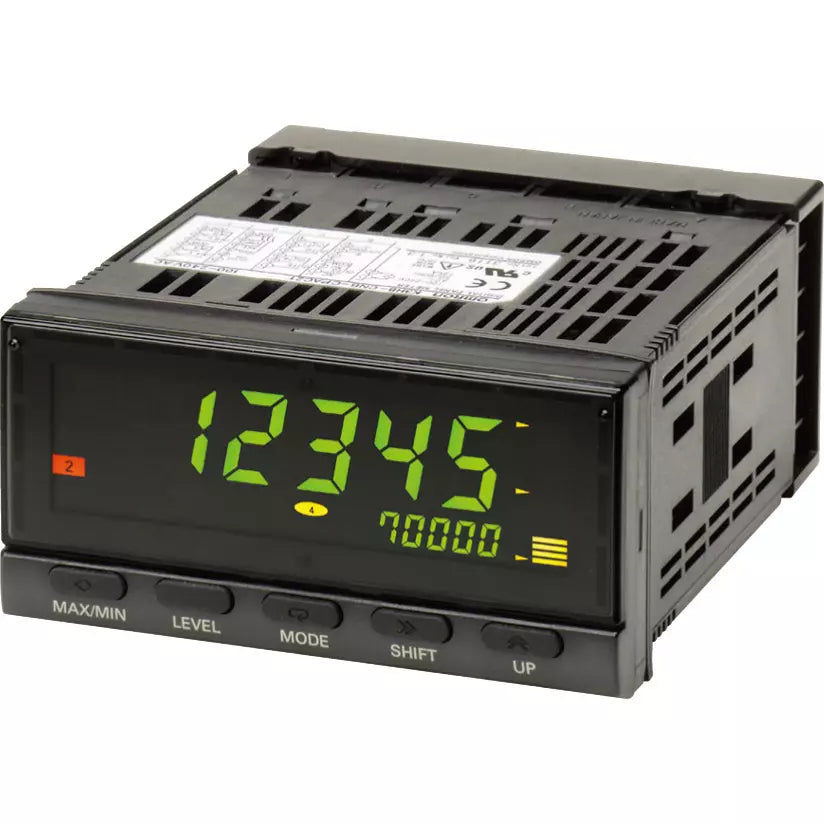

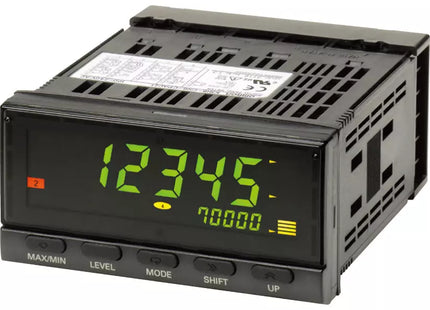

K3HB-CNB-AT11 AC100-240
|
Weight
|
About 300 g
|
Type of Product
|
Integration/Addition/Subtraction Pulse Meter
|
Display Type
|
Negative type LCD (backlight LED) display, 7segment digital display
|
Operation Ambient Temperature
|
-10 to +55℃ (with no icing or condensation)
|
Function
|
Scaling function, measurement operation selection, output hysteresis, output off delay, output test, display value selection, display color switching, key protection, bank switching, display refresh cycle, MAX/MIN hold, reset
|
Character Height
|
PV: 14.2 mm (green/red switching), SV: 4.9 mm (green)
|
Input Type
|
NPN/voltage pulse
|
Display Range
|
19999～99999
|
Country of Origin
|
JAPAN
|
Insulation Resistance
|
20 MΩ or more (at 500 VDC)
|
Included Components
|
Waterproof packing, 2 fixtures, terminal cover, unit seal, instruction manual
|
Monotaro ID
|
39076301
|
Power Consumption
|
18VA or less
|
Power Supply Voltage
|
AC100～240 V
|
Display Digit Number
|
5 digits
|
Type of Sign
|
Panel mounting
|
Altitude
|
2000 m or less
|
Protection Class
|
Front: NEMA4X indoor compliant (equivalent to IP66), rear case: IP20, terminal part: IP00 + finger protection (VDE0106/100)
|
Applicable Standard
|
UL610101, CSA C22.2 No.1010.1 (Evaluated by UL), EN610101 (IEC610101) Pollution degree 2/Overvoltage category II EN61326: 1997, A1: 1998, A2: 2001
|
Protective Function
|
Memory / EEPROM (nonvolatile memory), number of writes: 100,000 times
|
Input Signal
|
30Hz max. ON / OFF pulse width 15ms or more
|
Suitable Sensor
|
Residual voltage when ON: 3 V or less Leakage current when OFF: 1.5 mA or less
|
Measurement Range
|
Function F1, F2: ±2 Gigacount Function F3: 0 to 4 Gigacount
|
Name of Manufacturer/Packer/Importer
|
Omron Corporation
|
