Description

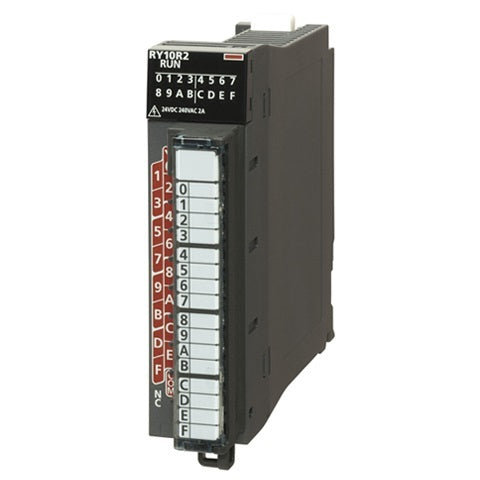

FA-MOD PLC: Digital Output Module
| Series |
MELSEC IQ-R SERIES |
| Type |
RELAY OUTPUT |
| Occupied I/O Points on PLC |
16 |
| Integrated Digital Outputs |
16 |
| Output Type |
RELAY |
| Rated Load Voltage (VAC) |
240 |
| Rated Load Voltage (VDC) |
24 |
| Wiring |
SCREW |
| Int. Current Consumption (A) |
0,45 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
NON-COMPLIANT |
| Shipping Approvals |
ABS,BV,DNV GL,LR,NK,RINA |
| UKCA |
COMPLIANT |
Product Dimensions & Weight
| Width (mm) |
27,8 |
| Height (mm) |
98 (106) |
| Depth (mm) |
131 |
| Weight (kg) |
0,22 |
Life Cycle
| Predecessor |
238088 |
| Serial No. on the Box |
QR1 |
Campaigns
Product Packaging
| Cardboard (g) |
45 |
| Other paper (g) |
26 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
3 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
