Description

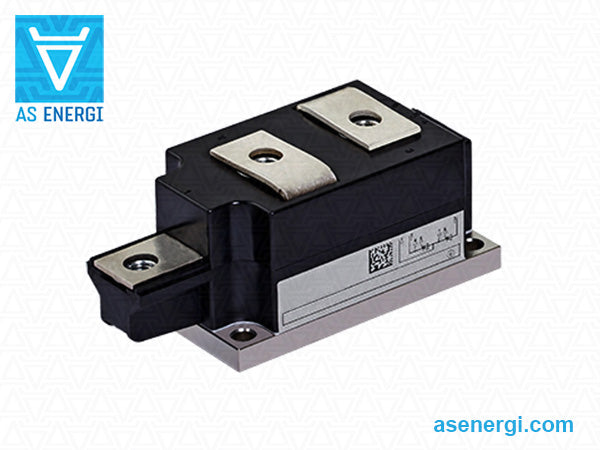

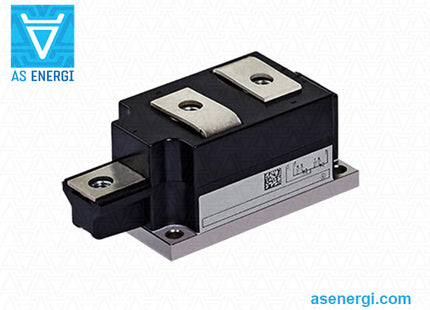

Diode module specifications DD350N18K Maximum allowable average forward current (Case temperature) IFAV (Tcase) 350 A (100ºC) Repetitive pulsed reverse voltage VRRM 1800 V Surge current IFSM 11000 A Safety factor I2t 605 kA2·s Threshold voltage VT(TO) 0.75 V Slope resistance rT 0.40 mΩ Junction temperature Tvj max 150 ºC Thermal resistance, junction to case Rth(j-c) 0.13 K/W Design (switches) - dual component Type (circuit diagram) - diode-diode Weight W 0.8 kg Package, Dimensions, mm L×B×H DP50A 115x50x52 Replacement AS ENERGITM type AMDD350N18K
