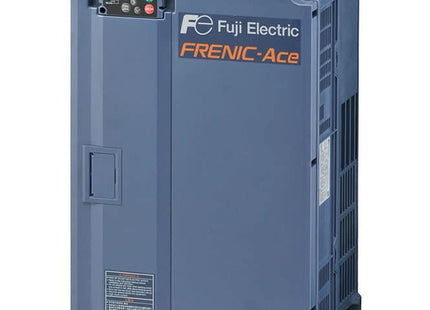

MODEL- DRIVE 1.5KW 400VAC FRN0006E2S-AGB FUJI

Description

Specifications

  • Product Series: FRENIC-Ace (E2)
  • Family Series: Fuji Drives, Ace Series
  • HP Ratings
    • HND: 3
    • HHD: 2
  • Output Volt Range: 0 – 480V, 3-Phase
  • Amps, 3-Phase
    • HND: 5
    • HHD: 4.2
  • Amps, Single Phase Input
    • HND: Check Instruction Book
    • HHD: Check Instruction Book
  • Overload capability
    • HND: 120%-1 min
    • HHD: 150%-1 min, 200%-0.5 s
  • Watt loss @ Running
    • HND: 69
    • HHD: 57
  • DCR
    • DCR PN#: –
    • DCR Watt Loss: –
  • Nominal Input Voltage, frequency: 460, 50/60Hz
  • Input Volt Range: 380-480, +10 to -15%
  • Max output Frequency: 500 Hz
  • Digital Input: 5 (7)
  • Analog Inputs: 2
  • Transistor outputs: 2
  • General purpose relay output: 1
  • Alarm relay output: 1
  • Braking Unit and Braking Resistor
    • Braking Unit Type: –
    • Braking Unit QTY.: –
    • Braking Resistor Type: DB2.2-4
    • Braking Resistor QTY.: 1
  • Enclosure
    • Standard: IP20, UL open type
    • Cooling: Fan cooling
    • Weight/Mass [lbs.(kg)]: 3.3(1.5)
    • Drawing Open Chassis: ROA701505
    • Dimensions H x W x D (inches):  5.51 x 4.33 x 5.63
  • NEMA Kit
    • NEMA/UL Type 1: NEMA1-12E2-24
  • Option Cards, Communication Card
    • Modbus RTU: OPC-E2-RS
    • DeviceNet: OPC-DEV
    • Profibus: OPC-PDP3
    • Profinet: OPC-PRT3
    • CC-Link: OPC-CCL
    • CANOpen: OPC-COP2
    • Multiprotocol Ethernet Interface: OPC-PRT3
  • Option Card, Input/Output
    • Digital Output interface card: OPC-DIO
    • Analog Input / Output Interface Card: OPC-AIO
    • PG Interface Card (5V): OPC-E2-PG
    • PG Interface Card (12V): OPC-E2-PG3

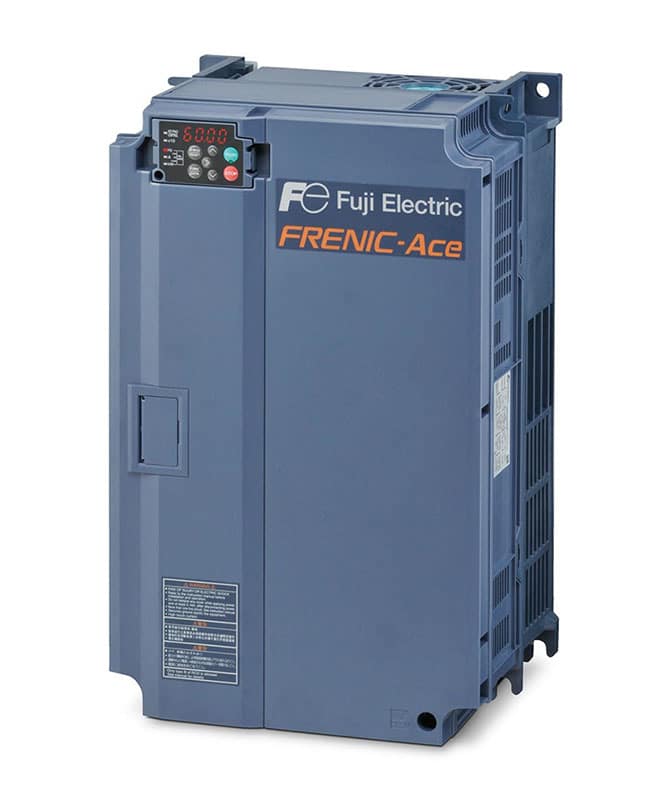

MODEL- DRIVE 1.5KW 400VAC FRN0006E2S-AGB FUJI

Product form

Specifications Product Series: FRENIC-Ace (E2) Family Series: Fuji Drives, Ace Series HP Ratings HND: 3 HHD: 2 Output Volt Range: 0 – 480V, 3-Phase Amps,... Read more

Rs. 13,739.92 Excl. VAT

    Description

    Specifications

    • Product Series: FRENIC-Ace (E2)
    • Family Series: Fuji Drives, Ace Series
    • HP Ratings
      • HND: 3
      • HHD: 2
    • Output Volt Range: 0 – 480V, 3-Phase
    • Amps, 3-Phase
      • HND: 5
      • HHD: 4.2
    • Amps, Single Phase Input
      • HND: Check Instruction Book
      • HHD: Check Instruction Book
    • Overload capability
      • HND: 120%-1 min
      • HHD: 150%-1 min, 200%-0.5 s
    • Watt loss @ Running
      • HND: 69
      • HHD: 57
    • DCR
      • DCR PN#: –
      • DCR Watt Loss: –
    • Nominal Input Voltage, frequency: 460, 50/60Hz
    • Input Volt Range: 380-480, +10 to -15%
    • Max output Frequency: 500 Hz
    • Digital Input: 5 (7)
    • Analog Inputs: 2
    • Transistor outputs: 2
    • General purpose relay output: 1
    • Alarm relay output: 1
    • Braking Unit and Braking Resistor
      • Braking Unit Type: –
      • Braking Unit QTY.: –
      • Braking Resistor Type: DB2.2-4
      • Braking Resistor QTY.: 1
    • Enclosure
      • Standard: IP20, UL open type
      • Cooling: Fan cooling
      • Weight/Mass [lbs.(kg)]: 3.3(1.5)
      • Drawing Open Chassis: ROA701505
      • Dimensions H x W x D (inches):  5.51 x 4.33 x 5.63
    • NEMA Kit
      • NEMA/UL Type 1: NEMA1-12E2-24
    • Option Cards, Communication Card
      • Modbus RTU: OPC-E2-RS
      • DeviceNet: OPC-DEV
      • Profibus: OPC-PDP3
      • Profinet: OPC-PRT3
      • CC-Link: OPC-CCL
      • CANOpen: OPC-COP2
      • Multiprotocol Ethernet Interface: OPC-PRT3
    • Option Card, Input/Output
      • Digital Output interface card: OPC-DIO
      • Analog Input / Output Interface Card: OPC-AIO
      • PG Interface Card (5V): OPC-E2-PG
      • PG Interface Card (12V): OPC-E2-PG3
