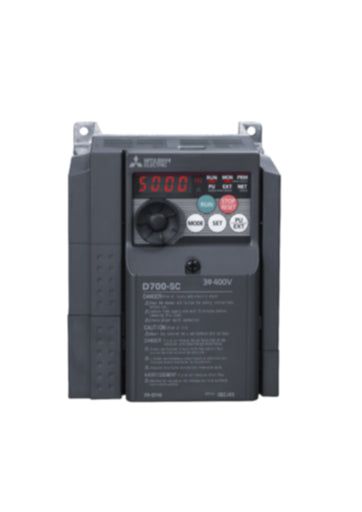

MODEL- DRIVE FR-D740-036SC MITSUBISHI ELECTRIC

Description

FA-Inverter: Inverter

Series FR-D700 SERIES
Type FR-D700 COMPACT INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 325
Maximum Rated Voltage (V) 480
Max. Permissible Voltage (V) 528
Current Type AC
Phases 3
Rated Output Current ND (A) 3,6
Rated Motor Capacity ND (kW) 1,5
Frequency Range (Hz) 0,2–400
Control Method V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR
Brake Chopper ED (%) 30
Integrated EMC Filter NO
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display BUILT-IN
Display Type 4 DIGITS LED
PLC Function NO
Integrated Digital Inputs 5
Digital Outputs (Transistor) 1
Digital Outputs (Relay) 1
Integrated Analogue Inputs 2
Integrated Analogue Outputs 1
IO Type of Terminal Block SPRING CLAMP
Expandable NO
RS-485 1
USB NO
Ethernet Port NO
Built-In Network MODBUS-RTU
Leakage Current (mA) 1
Power Loss ND (W) 90
Standby Power Consumption (W) 10,5-17
Protection Class IP20

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC COMPLIANT
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 108
Height (mm) 128
Depth (mm) 135,5
Weight (kg) 1,3

Life Cycle

Discontinued (EOL) 01.01.2026
Last Time Buy (LTB) 31.12.2026
End of Service (EOS) 31.01.2034
Predecessor 212416
Successor 738948, 747979
Serial No. on the Box QR1

Campaigns

Selling Status Standard

Product Packaging

Cardboard (g) 330,5
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 2,2
Wood (g) 0
Glass (g) 0
Others (g) 0

MODEL- DRIVE FR-D740-036SC MITSUBISHI ELECTRIC

Product form

FA-Inverter: Inverter Series FR-D700 SERIES Type FR-D700 COMPACT INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 325 Maximum... Read more

Rs. 13,900.00 Excl. VAT

    Description

    FA-Inverter: Inverter

    Series FR-D700 SERIES
    Type FR-D700 COMPACT INVERTER
    Minimum Rated Voltage (V) 380
    Min. Permissible Voltage (V) 325
    Maximum Rated Voltage (V) 480
    Max. Permissible Voltage (V) 528
    Current Type AC
    Phases 3
    Rated Output Current ND (A) 3,6
    Rated Motor Capacity ND (kW) 1,5
    Frequency Range (Hz) 0,2–400
    Control Method V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL
    Motor Type INDUCTION MOTOR
    Brake Chopper ED (%) 30
    Integrated EMC Filter NO
    Safe Torque Off (STO) YES
    Regenerative (4Q) NO
    Integrated DC Choke NO
    Display BUILT-IN
    Display Type 4 DIGITS LED
    PLC Function NO
    Integrated Digital Inputs 5
    Digital Outputs (Transistor) 1
    Digital Outputs (Relay) 1
    Integrated Analogue Inputs 2
    Integrated Analogue Outputs 1
    IO Type of Terminal Block SPRING CLAMP
    Expandable NO
    RS-485 1
    USB NO
    Ethernet Port NO
    Built-In Network MODBUS-RTU
    Leakage Current (mA) 1
    Power Loss ND (W) 90
    Standby Power Consumption (W) 10,5-17
    Protection Class IP20

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT

    Product Dimensions & Weight

    Width (mm) 108
    Height (mm) 128
    Depth (mm) 135,5
    Weight (kg) 1,3

    Life Cycle

    Discontinued (EOL) 01.01.2026
    Last Time Buy (LTB) 31.12.2026
    End of Service (EOS) 31.01.2034
    Predecessor 212416
    Successor 738948, 747979
    Serial No. on the Box QR1

    Campaigns

    Selling Status Standard

    Product Packaging

    Cardboard (g) 330,5
    Other paper (g) 0
    Aluminum (g) 0
    Steel (g) 0
    Styrofoam (g) 0
    Other plastic (g) 2,2
    Wood (g) 0
    Glass (g) 0
    Others (g) 0
