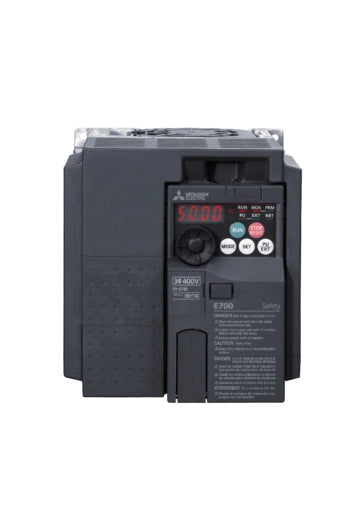

MODEL- DRIVE FR-E740-060-EC 2.2 KW 3HP OP 6A MITSUBISHI

Description

FA-Inverter: Inverter

Series FR-E700 SERIES
Type FR-E700 STANDARD INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 325
Maximum Rated Voltage (V) 480
Max. Permissible Voltage (V) 528
Current Type AC
Phases 3
Rated Output Current ND (A) 6
Rated Motor Capacity ND (kW) 2,2
Control Method V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR
Brake Chopper ED (%) 30
Integrated EMC Filter NO
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display BUILT-IN
Display Type 3 DIGITS LED
PLC Function NO
Integrated Digital Inputs 6
Digital Outputs (Transistor) 2
Digital Outputs (Relay) 1
Integrated Analogue Inputs 2
Integrated Analogue Outputs 1
IO Type of Terminal Block SPRING CLAMP
Expandable YES
RS-485 1
USB 1
Built-In Network MODBUS-RTU
Leakage Current (mA) 1
Power Loss ND (W) 100
Standby Power Consumption (W) 9,8
Protection Class IP20

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC COMPLIANT
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 140
Height (mm) 150
Depth (mm) 141,5
Weight (kg) 1,9

Product Packaging

Cardboard (g) 526
Other paper (g) 0
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 2,2
Wood (g) 0
Glass (g) 0
Others (g) 0

MODEL- DRIVE FR-E740-060-EC 2.2 KW 3HP OP 6A MITSUBISHI

Product form

FA-Inverter: Inverter Series FR-E700 SERIES Type FR-E700 STANDARD INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 325 Maximum... Read more

Rs. 23,222.40 Excl. VAT
