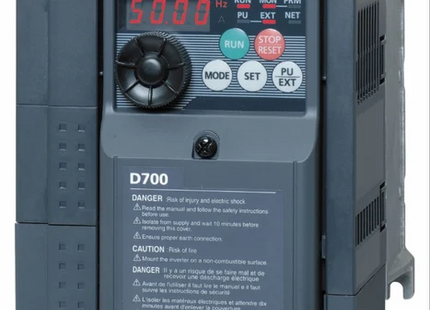

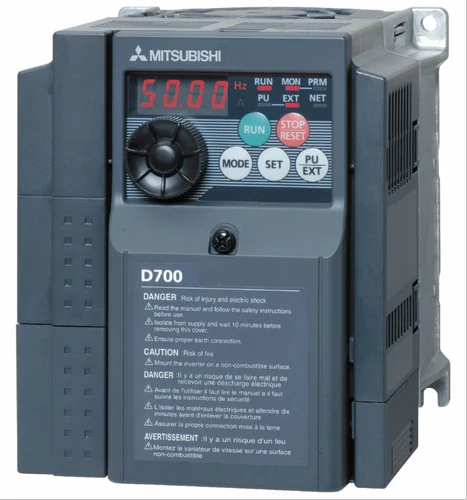

Mitsubishi AC Drive FR-D700 Series, The user-friendliness of the FR-D700 series makes these units a particularly good choice for standard applications. Entering drive parameters and settings is quick and easy with the one-touch Digital Dial on the integrated control panel, saving time and cutting costs. The FR-D700 series is compliant to the EU Machinery Directive without the addition of previously required external devices. Operation of an external Emergency Stop device results in a highly reliable immediate shutoff of the D700's output to the motor. This safety stop function conforms to the following standards.
Features:
- Spring clamp terminal (control circuit terminal)
- Long-life design
- Leading life check function
- Quick setup with the setting dial
- Enclosure surface operation panel FR-PA07 (option)
- Noise filter option which is compatible with EMC Directive (EN61800-3 2nd Environment Category C3) is available
- RoHS Directive compliant
- Complies with UL, cUL, EC Directives (CE marking) as a standard model
- Filterpack FR-BFP2 (option)
- Easy replacement of cooling fan
- Easy setting from a personal computer using the FR Configurator (option)
- Easily replaceable compact body
Model Range:
- FR-D720S-008SC-EC
- FR-D720S-014SC-EC
- FR-D720S-025SC-EC
- FR-D720S-042SC-EC
- FR-D720S-070SC-EC
- FR-D720S-100SC-EC
- FR-D740-012-E16
- FR-D740-022-E16
- FR-D740-036-E16
- FR-D740-050-E16
- FR-D740-080-E16
- FR-D740-120-E16
- FR-D740-160-E16
