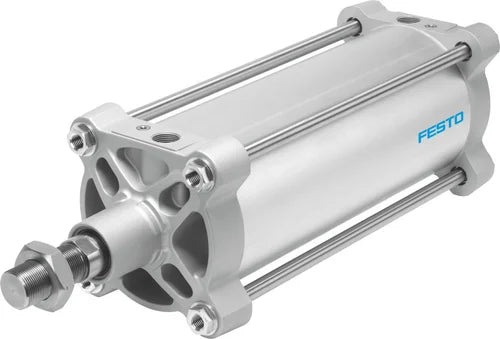

MODEL- DSBG-160-320-PPVA-N3 CYLINDER

Description

Shaft Diameter 150 mm
Stroke Length 250 mm
Force 11310 N
Material aluminium
Bore Size 0.06 MPa ... 1 MPa
Country of Origin Made in India
Availability In Stock
  • Stroke320 mm
  • Piston diameter160 mm
  • Piston rod threadM36x2
  • CushioningPneumatic cushioning, adjustable at both ends
  • Mounting positionoptional
  • Conforms to standardISO 15552
  • Piston-rod endMale thread
  • DesignPiston Piston rod Tie rod Cylinder barrel
  • Position detectionVia proximity switch
  • Symbol00991235
  • VariantsPiston rod at one end
  • Operating pressure0.06 MPa ... 1 MPa
  • Operating pressure0.6 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions3.3 J
  • Cushioning length48 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke11310 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke12064 N
  • Moving mass7396 g
  • Moving mass for 0 mm stroke4292 g
  • Additional moving mass per 10 mm stroke97 g
  • Product weight18407 g
  • Basic weight for 0 mm stroke11751 g
  • Additional weight per 10 mm stroke208 g
  • Type of mountingEither: Via female thread With accessories
  • Pneumatic connectionG3/4
  • Note on materialsRoHS-compliant
  • Material coverCast aluminium, coated
  • Material piston sealNBR
  • Material pistonCast aluminium
  • Material piston rodHigh-alloy steel
  • Material piston rod wiperNBR
  • Buffer seal materialTPE-U(PU)
  • Cushioning boss materialPOM
  • Material cylinder barrelSmooth-anodised wrought aluminium alloy
  • Material nutGalvanised steel
  • Material bearingMetal polymer compound
  • Material collar nutGalvanised steel
  • Material tie rodHigh-alloy steel

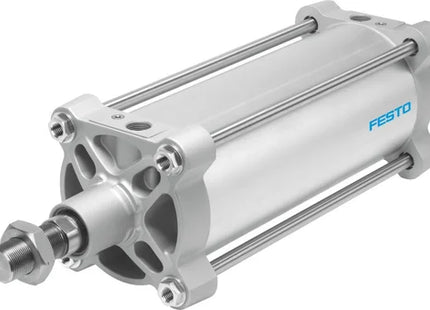

MODEL- DSBG-160-320-PPVA-N3 CYLINDER

Product form

Shaft Diameter 150 mm Stroke Length 250 mm Force 11310 N Material aluminium Bore Size 0.06 MPa ... 1 MPa... Read more

Rs. 20,319.60 Excl. VAT

    Description

    Shaft Diameter 150 mm
    Stroke Length 250 mm
    Force 11310 N
    Material aluminium
    Bore Size 0.06 MPa ... 1 MPa
    Country of Origin Made in India
    Availability In Stock
    • Stroke320 mm
    • Piston diameter160 mm
    • Piston rod threadM36x2
    • CushioningPneumatic cushioning, adjustable at both ends
    • Mounting positionoptional
    • Conforms to standardISO 15552
    • Piston-rod endMale thread
    • DesignPiston Piston rod Tie rod Cylinder barrel
    • Position detectionVia proximity switch
    • Symbol00991235
    • VariantsPiston rod at one end
    • Operating pressure0.06 MPa ... 1 MPa
    • Operating pressure0.6 bar ... 10 bar
    • Mode of operationDouble-acting
    • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
    • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
    • Corrosion resistance class CRC2 - Moderate corrosion stress
    • LABS (PWIS) conformityVDMA24364-B1/B2-L
    • Ambient temperature-20 °C ... 80 °C
    • Impact energy in end positions3.3 J
    • Cushioning length48 mm
    • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke11310 N
    • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke12064 N
    • Moving mass7396 g
    • Moving mass for 0 mm stroke4292 g
    • Additional moving mass per 10 mm stroke97 g
    • Product weight18407 g
    • Basic weight for 0 mm stroke11751 g
    • Additional weight per 10 mm stroke208 g
    • Type of mountingEither: Via female thread With accessories
    • Pneumatic connectionG3/4
    • Note on materialsRoHS-compliant
    • Material coverCast aluminium, coated
    • Material piston sealNBR
    • Material pistonCast aluminium
    • Material piston rodHigh-alloy steel
    • Material piston rod wiperNBR
    • Buffer seal materialTPE-U(PU)
    • Cushioning boss materialPOM
    • Material cylinder barrelSmooth-anodised wrought aluminium alloy
    • Material nutGalvanised steel
    • Material bearingMetal polymer compound
    • Material collar nutGalvanised steel
    • Material tie rodHigh-alloy steel
