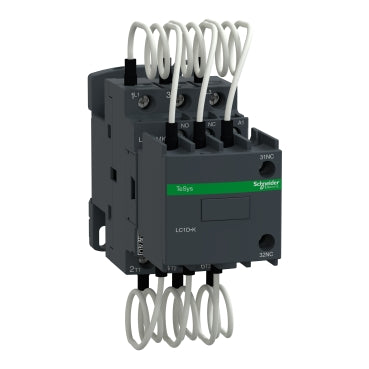

MODEL-Duty Contactor 25 KVAR Make Schneider

Description


Main
Range TeSys
TeSys Deca
Product name TeSys LC1D.K
TeSys Deca
Product or component type Capacitor duty contactor
Device short name LC1DMK
Device application Control
Contactor application Power factor correction
Utilisation category AC-6b
Poles description 3P
power pole contact composition 3 NO
Device location in system Line interruption
Inside delta interruption
[Ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz
Reactive power rating 14 kvar at 230 V AC 50 Hz 60 °C
25 kvar at 400 V AC 50 Hz 60 °C
27 kvar at 440 V AC 50 Hz 60 °C
42 kvar at 690 V AC 50 Hz 60 °C
Control circuit type AC at 50/60 Hz
[Uc] control circuit voltage 220 V AC 50/60 Hz
Auxiliary contact composition 1 NO + 2 NC instantaneous
Electrical durability 300000 cycles at Ue 400 V
200000 cycles at Ue 690 V
Mounting support DIN rail
Plate
Standards EN/IEC 60947-1
EN/IEC 60947-4-1
IEC 60335-1
Product certifications IECEE CB Scheme
UKCA
Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 2.5…16 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 2.5…6 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
Tightening torque Control circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 2.5 N.m - on screw clamp terminals
Maximum operating rate 240 cyc/h
Complementary
Auxiliary contacts type type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment
IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for operation -5…60 °C
Ambient air temperature for storage -60…80 °C
Operating altitude 0...3000 m
Height 125 mm
Width 45 mm
Depth 127 mm
Net weight 0.63 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 19.500 cm
Package 1 Length 23.000 cm
Package 1 Weight 599.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.077 kg
Unit Type of Package 3 P06
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 42.500 kg
Contractual warranty
Warranty (in months) 18



MODEL-Duty Contactor 25 KVAR Make Schneider

Product form

Main Range TeSysTeSys Deca Product name TeSys LC1D.KTeSys Deca Product or component type Capacitor duty contactor Device short name LC1DMK... Read more

Rs. 5,428.00 Excl. VAT

    Description


    Main
    Range TeSys
    TeSys Deca
    Product name TeSys LC1D.K
    TeSys Deca
    Product or component type Capacitor duty contactor
    Device short name LC1DMK
    Device application Control
    Contactor application Power factor correction
    Utilisation category AC-6b
    Poles description 3P
    power pole contact composition 3 NO
    Device location in system Line interruption
    Inside delta interruption
    [Ue] rated operational voltage Power circuit: 690 V AC 50/60 Hz
    Reactive power rating 14 kvar at 230 V AC 50 Hz 60 °C
    25 kvar at 400 V AC 50 Hz 60 °C
    27 kvar at 440 V AC 50 Hz 60 °C
    42 kvar at 690 V AC 50 Hz 60 °C
    Control circuit type AC at 50/60 Hz
    [Uc] control circuit voltage 220 V AC 50/60 Hz
    Auxiliary contact composition 1 NO + 2 NC instantaneous
    Electrical durability 300000 cycles at Ue 400 V
    200000 cycles at Ue 690 V
    Mounting support DIN rail
    Plate
    Standards EN/IEC 60947-1
    EN/IEC 60947-4-1
    IEC 60335-1
    Product certifications IECEE CB Scheme
    UKCA
    Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
    Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
    Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
    Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
    Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
    Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
    Power circuit: screw clamp terminals 1 2.5…16 mm² - cable stiffness: solid
    Power circuit: screw clamp terminals 2 2.5…6 mm² - cable stiffness: solid
    Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible without cable end
    Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end
    Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end
    Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
    Tightening torque Control circuit: 1.7 N.m - on screw clamp terminals
    Power circuit: 2.5 N.m - on screw clamp terminals
    Maximum operating rate 240 cyc/h
    Complementary
    Auxiliary contacts type type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
    Environment
    IP degree of protection IP20 front face conforming to IEC 60529
    Ambient air temperature for operation -5…60 °C
    Ambient air temperature for storage -60…80 °C
    Operating altitude 0...3000 m
    Height 125 mm
    Width 45 mm
    Depth 127 mm
    Net weight 0.63 kg
    Packing Units
    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 7.000 cm
    Package 1 Width 19.500 cm
    Package 1 Length 23.000 cm
    Package 1 Weight 599.000 g
    Unit Type of Package 2 S03
    Number of Units in Package 2 6
    Package 2 Height 30.000 cm
    Package 2 Width 30.000 cm
    Package 2 Length 40.000 cm
    Package 2 Weight 4.077 kg
    Unit Type of Package 3 P06
    Number of Units in Package 3 48
    Package 3 Height 75.000 cm
    Package 3 Width 60.000 cm
    Package 3 Length 80.000 cm
    Package 3 Weight 42.500 kg
    Contractual warranty
    Warranty (in months) 18
