Protection Class
|
IEC standard IP67
|
Type of Product
|
Proximity Sensor
|
Model No
|

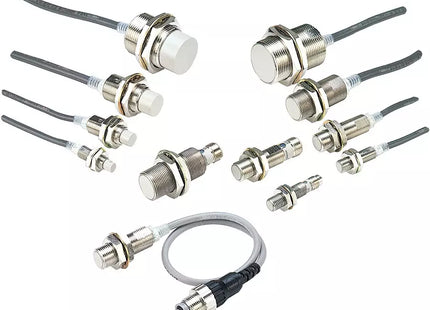

E2E-X8C118 2M
|
Weight
|
Approx. 170 g (Packed)
|
Country of Origin
|
Japan
|
Detection Distance
|
8 mm
|
Head Shape
|
Screw
|
Monotaro ID
|
63697333
|
Case Material
|
Brass Nickel Plating
|
Protection Circuit
|
Load Short Circuit Protection, Output Reverse Connection Protection, Power Supply Reverse Connection Protection, Surge Absorption
|
Ambient Humidity
|
Operating & Storage: 35 to 95% RH (No Condensation)
|
Included Components
|
Instruction Manual, Tightening Nut, Washer with Teeth
|
Influence of Voltage
|
Within rated voltage ± 15% range, within rated voltage ± 1% of sensing distance
|
Standard sensing Object
|
Iron: 24 × 24 × 1 mm
|
Connection Type
|
Cord drawer type
|
Insulation Resistance
|
50 MΩ or more (at 500 VDC) between live parts and case
|
Setting Distance (mm)
|
0～6.4 mm
|
Cord
|
Standard PVC Code
|
Power Supply Voltage
|
DC10-30 V (including 10% ripple (pp))
|
Vibration Resistance
|
10-55 Hz, multiple width 1.5 mm, X, Y, Z directions 2h
|
Current Consumption
|
16 mA or less
|
Control Output
|
Open/Close Capacity: 200 mA or less (DC10-30V Class2)
|
Residual voltage (V)
|
2 V or Less (At Load Current 200 mA & Cord Length 2 m)
|
Name of Manufacturer/Packer/Importer
|
Omron Corporation
|
