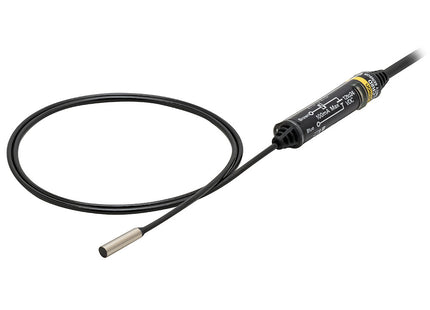

| Sensing head size |
3 dia. |
| Type |
Cylinder type, Shielded |
| Power source |
DC 2-wire models |
| Sensing distance |
0.8 mm ±15% |
| Setting distance |
0 to 0.56 mm |
| Differential distance |
10% max. of sensing distance |
| Sensing object |
Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard sensing object |
Iron 5 x 5 x 1 mm |
| Response frequency |
1.5 kHz (Average value) |
| Power supply voltage |
12 to 24 VDC ripple (p-p) 10% max. |
| Operating voltage range |
10 to 30 VDC |
| Leakage current |
0.8 mA max. |
| Control output (Switching capacity) |
5 to 100 mA |
| Control output (Residual voltage) |
3 V max. (Load current 100 mA with cable length of 2 m) |
| Indicator |
Operation indicator (red), Operation setting indicator (green) |
| Operation mode |
NO |
| Protective circuit |
Output short-cut protection
Surge suppressor |
| Ambient temperature (Operating) |
-25 to 70 ℃ |
| Ambient temperature (Storage) |
-25 to 70 ℃ |
| Ambient humidity (Operating) |
35 to 95 % |
| Ambient humidity (Storage) |
35 to 95 % |
| Temperature influence |
±20% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃ |
| Voltage influence |
±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Insulation resistance |
Between charged parts and the case: 50 MΩ min. at 500 VDC |
| Dielectric strength |
Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min |
| Vibration resistance |
Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h |
| Shock resistance |
Destruction: 1000 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection |
IEC: IP67
Company standard: Oil-proof (For Sensor Head only) |
| Connection method |
Pre-wired models (2 m) |
| Weight |
Package: Approx. 45 g |
| Material |
Case: Brass
Sensing surface: ABS |
| Accessories |
Instruction manual, Amplifier Mountig Brackets |
