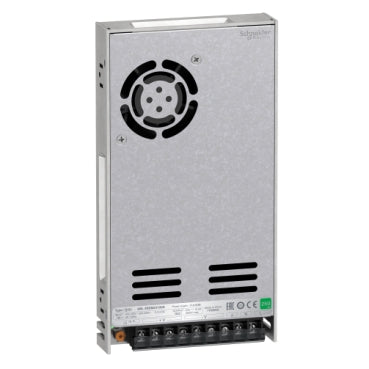

MODEL - ELECTRICAL CONSUMABLE ITEM ABL2R24100K SCHINDER

Description

Range of product Easy Modicon ABL2
Product or component type Power supply
Power supply type Regulated switch mode
Rated power in W 252 W
Main Input Voltage 100...120 V AC single phase
200...240 V
Output voltage 24 V DC
Power supply output current 10.5 A
Operating position Any position
Vibration resistance 4 gn (f= 10…500 Hz) conforming to IEC 61131-2
Name of test Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A
Complementary
Input voltage limits 90...132 V
180...264 V
Network frequency 47...63 Hz
Inrush current 60 A at 100...120 V AC
60 A at 200...240 V AC
Cos phi 0.5
Efficiency 87 %
Power dissipation in W 37.6 W
Current consumption 2.5 A at 240 V
Input protection type Integrated fuse (not interchangeable)
Output voltage limits 20.4...27.6 V
Line and load regulation +/- 1 %
Holding time >= 12 ms at 115 V
Output protection type Against overload, protection technology: 1.1...1.5 x In
Against short-circuits, protection technology: 1.1...1.5 x In
Against overvoltage, protection technology: 28.8...33.6 V
Thermal
Connections - terminals For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12
Marking CE
Electromagnetic compatibility Immunity to electromagnetic interference conforming to EN 55022 class B
Mounting support DIN rail with accessory
DIN rail with accessory
Operating altitude 5000 m
Output coupling Series
Overvoltage category II
Meantime between failure [MTBF] 600000 h at 25 °C
Status LED 1 LED (green) output voltage
Width 215 mm
Height 115 mm
Depth 30 mm
Product weight 0.75 kg
Environment
Product certifications EAC
IC
RoHS
KC
RCM
IP degree of protection IP20 conforming to IEC 62368-1
Ambient air temperature for operation -30…70 °C (with power derating of 2.5 % per °C)
Ambient air temperature for storage -40…85 °C
Relative humidity 10…95 %
Overvoltage category Class I conforming to IEC 62368-1
Pollution degree 2
Dielectric strength 2000 V between input and ground
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.6 cm
Package 1 Width 12.3 cm
Package 1 Length 22.2 cm
Package 1 Weight 850.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 21
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 19.0 kg
Unit Type of Package 3 P06
Number of Units in Package 3 252
Package 3 Height 90.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 221.5 kg
Contractual warranty
Warranty (in months) 18

MODEL - ELECTRICAL CONSUMABLE ITEM ABL2R24100K SCHINDER

Product form

Range of product Easy Modicon ABL2 Product or component type Power supply Power supply type Regulated switch mode Rated power... Read more

Rs. 4,597.00 Excl. VAT

    Description

    Range of product Easy Modicon ABL2
    Product or component type Power supply
    Power supply type Regulated switch mode
    Rated power in W 252 W
    Main Input Voltage 100...120 V AC single phase
    200...240 V
    Output voltage 24 V DC
    Power supply output current 10.5 A
    Operating position Any position
    Vibration resistance 4 gn (f= 10…500 Hz) conforming to IEC 61131-2
    Name of test Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A
    Complementary
    Input voltage limits 90...132 V
    180...264 V
    Network frequency 47...63 Hz
    Inrush current 60 A at 100...120 V AC
    60 A at 200...240 V AC
    Cos phi 0.5
    Efficiency 87 %
    Power dissipation in W 37.6 W
    Current consumption 2.5 A at 240 V
    Input protection type Integrated fuse (not interchangeable)
    Output voltage limits 20.4...27.6 V
    Line and load regulation +/- 1 %
    Holding time >= 12 ms at 115 V
    Output protection type Against overload, protection technology: 1.1...1.5 x In
    Against short-circuits, protection technology: 1.1...1.5 x In
    Against overvoltage, protection technology: 28.8...33.6 V
    Thermal
    Connections - terminals For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12
    Marking CE
    Electromagnetic compatibility Immunity to electromagnetic interference conforming to EN 55022 class B
    Mounting support DIN rail with accessory
    DIN rail with accessory
    Operating altitude 5000 m
    Output coupling Series
    Overvoltage category II
    Meantime between failure [MTBF] 600000 h at 25 °C
    Status LED 1 LED (green) output voltage
    Width 215 mm
    Height 115 mm
    Depth 30 mm
    Product weight 0.75 kg
    Environment
    Product certifications EAC
    IC
    RoHS
    KC
    RCM
    IP degree of protection IP20 conforming to IEC 62368-1
    Ambient air temperature for operation -30…70 °C (with power derating of 2.5 % per °C)
    Ambient air temperature for storage -40…85 °C
    Relative humidity 10…95 %
    Overvoltage category Class I conforming to IEC 62368-1
    Pollution degree 2
    Dielectric strength 2000 V between input and ground
    Packing Units
    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 3.6 cm
    Package 1 Width 12.3 cm
    Package 1 Length 22.2 cm
    Package 1 Weight 850.0 g
    Unit Type of Package 2 S03
    Number of Units in Package 2 21
    Package 2 Height 30.0 cm
    Package 2 Width 30.0 cm
    Package 2 Length 40.0 cm
    Package 2 Weight 19.0 kg
    Unit Type of Package 3 P06
    Number of Units in Package 3 252
    Package 3 Height 90.0 cm
    Package 3 Width 60.0 cm
    Package 3 Length 80.0 cm
    Package 3 Weight 221.5 kg
    Contractual warranty
    Warranty (in months) 18
