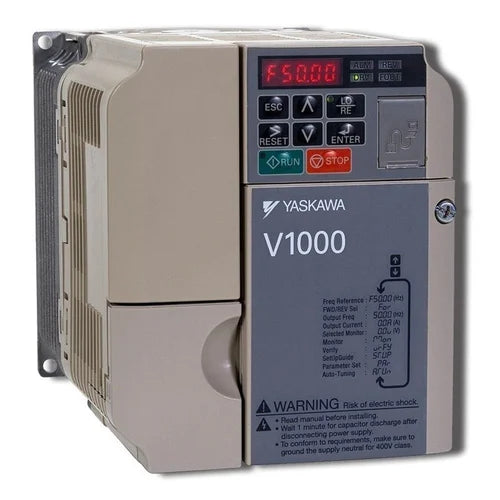

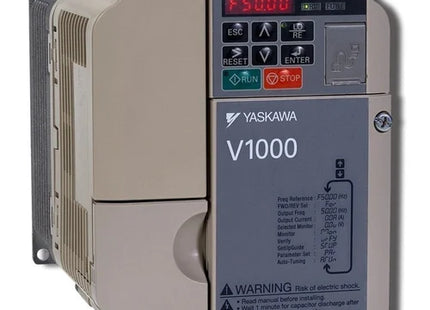

MODEL- ELECTRICAL ITEMS YASSHKAWA VFD 5.5KW V1000 MODEL:CIMR-VT4A0018FAA

Description

Usage For Pumps
Brand Yaskawa
Phase 3 Phase
Model Name/Number CIMR-VT4A0018FAA
Motor Power 7.4HP
Availability In Stock
  • 5.5kW (7.5HP) 400V 3ph motor to 14.8A at high overload, or 7.5kW (10HP) to 17.5A when Fan/Pump rated, is the Yaskawa V1000 Series AC Inverter.
  • Translates fixed frequency and operates under Sensorless Vector Control, or VxF. 400V in three phases with a variable frequency input.
  • For a common AC induction motor, three phases at 400 volts.Overload: 60 seconds at 150%. elevated overload.
  • Overload: 60 seconds at 120%. Pump/Fan Rated.
  • Range of Speed Control: 0.01-400 Hz.
  • Braking: 12 seconds of 100% torque every 120 seconds up to 32 ohms.
  • Features include one relay contact set, six digital inputs, one pulse input, one pulse output, and two analog inputs and one output.
  • SIL 2's "Safe Torque Off" (STO) feature.
  • 15A at high overload and 20A when the pump or fan is rated.
  • Voltage input: 380–480 volts Phase Three: 15%.
Get Best Price Of Yaskawa CIMR-VT4A0018FAA AC Drive.

MODEL- ELECTRICAL ITEMS YASSHKAWA VFD 5.5KW V1000 MODEL:CIMR-VT4A0018FAA

Product form

Usage For Pumps Brand Yaskawa Phase 3 Phase Model Name/Number CIMR-VT4A0018FAA Motor Power 7.4HP Availability In Stock 5.5kW (7.5HP) 400V... Read more

Rs. 26,000.00 Excl. VAT

    Description

    Usage For Pumps
    Brand Yaskawa
    Phase 3 Phase
    Model Name/Number CIMR-VT4A0018FAA
    Motor Power 7.4HP
    Availability In Stock
    • 5.5kW (7.5HP) 400V 3ph motor to 14.8A at high overload, or 7.5kW (10HP) to 17.5A when Fan/Pump rated, is the Yaskawa V1000 Series AC Inverter.
    • Translates fixed frequency and operates under Sensorless Vector Control, or VxF. 400V in three phases with a variable frequency input.
    • For a common AC induction motor, three phases at 400 volts.Overload: 60 seconds at 150%. elevated overload.
    • Overload: 60 seconds at 120%. Pump/Fan Rated.
    • Range of Speed Control: 0.01-400 Hz.
    • Braking: 12 seconds of 100% torque every 120 seconds up to 32 ohms.
    • Features include one relay contact set, six digital inputs, one pulse input, one pulse output, and two analog inputs and one output.
    • SIL 2's "Safe Torque Off" (STO) feature.
    • 15A at high overload and 20A when the pump or fan is rated.
    • Voltage input: 380–480 volts Phase Three: 15%.
    Get Best Price Of Yaskawa CIMR-VT4A0018FAA AC Drive.
