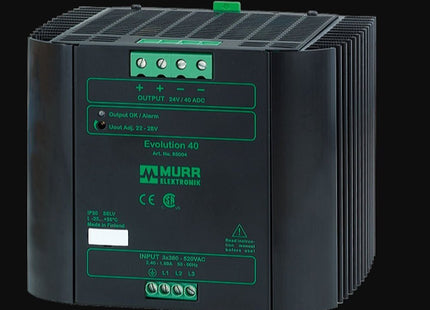

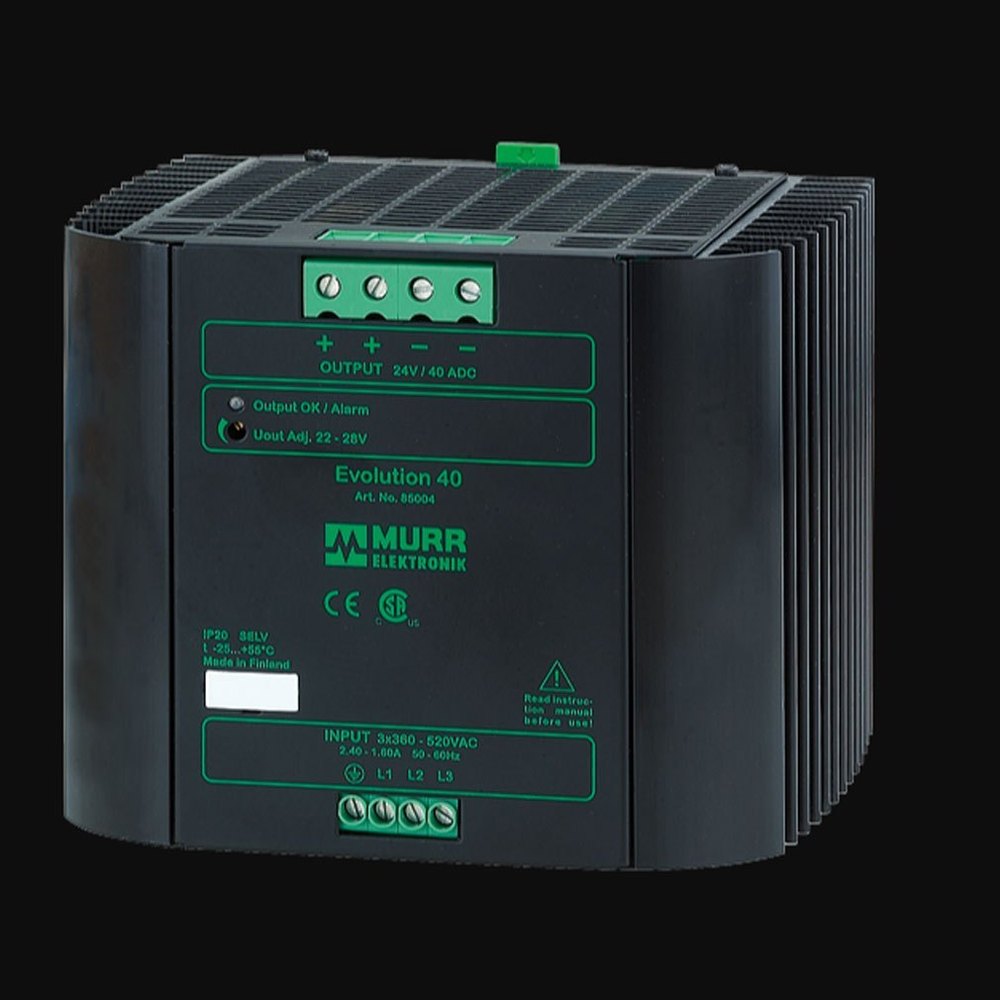

| Brand |
Murr Elektronik
|
| Output Voltage |
24 V DC (SELV), +/-1%; 22...28 V adjustable
|
| Input Voltage |
3x 324...572 V AC/480...745 V DC
|
| Input Current |
3x 2.4 A
|
| Degree Of Protection |
IP20
|
| Frequency |
50...60 Hz
|
| Model Number |
85004
|
| Primary fusing external |
max. 3x 20 A
|
| Standards |
IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2, SEMI F47
|
| Relative humidity |
5...95%, no condensation
|
| Efficiency |
91% (3x 400 V AC); 90% (3x 520 V AC)
|
| Dimensions HxWxD |
132x164x142 mm
|
| Temperature range |
-25...+70 DegreeC (storage temperature -40...+85 DegreeC)
|
| Output current |
40 A (+55 DegreeC); 30 A (+70 DegreeC)
|
| Power Boost |
Iout N x 150% (min. 4 s)
|
| Mains failure bridging time |
min. 19 ms (400 V AC)
|
| LED display |
LED (green): OK; LED (red): overload
|
| Availability |
In Stock
|
