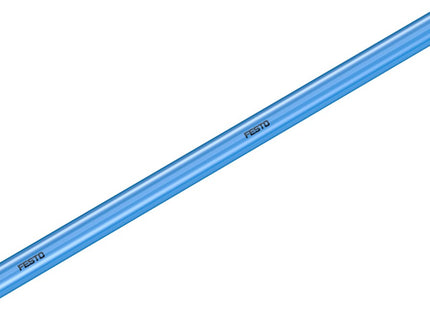

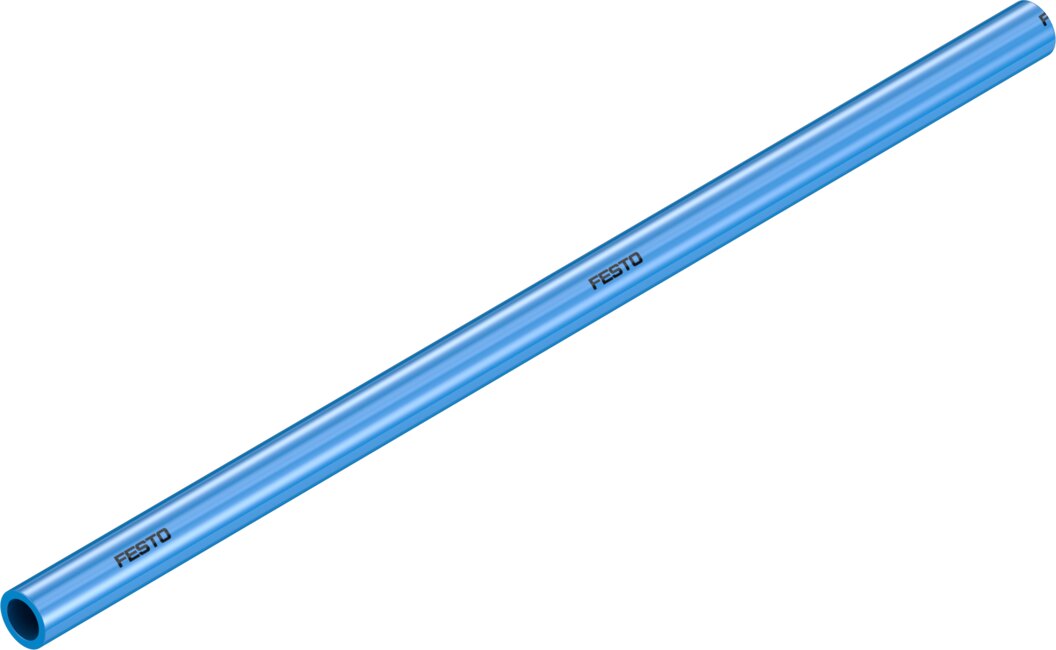

MODEL- EQUAL TO PU TUBE ML PUN-H-10X1 5-BL

Description

  • Outside diameter10 mm
  • Flow-relevant bending radius52 mm
  • Inside diameter7 mm
  • Min. bending radius28 mm
  • Instructions on useTPE-U Ether based
  • Tubing characteristicsSuitable for energy chains
  • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
  • Operating pressure complete temperature range-0.95 bar ... 6 bar
  • Operating pressure complete temperature range-13.775 psi ... 87 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C
  • ApprovalGerman Technical Control Board (TÜV)
  • Certificate issuing authorityB 013277 0527 00
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Fire test materialUL94 HB
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
  • Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-35 °C ... 60 °C
  • Product weight according to length0.0465 kg/m
  • Pneumatic connectionFor push-in connector O.D. 10 mm
  • ColourBlue
  • Shore hardnessD 52 +/-3
  • Note on materialsRoHS-compliant
  • Material tubingTPE-U(PU)

MODEL- EQUAL TO PU TUBE ML PUN-H-10X1 5-BL

Product form

Outside diameter10 mm Flow-relevant bending radius52 mm Inside diameter7 mm Min. bending radius28 mm Instructions on useTPE-U Ether based Tubing... Read more

Rs. 85.77 Excl. VAT

  • Shipped today? Order within: Jul 02, 2026 17:00:00 -0400

    Description

    • Outside diameter10 mm
    • Flow-relevant bending radius52 mm
    • Inside diameter7 mm
    • Min. bending radius28 mm
    • Instructions on useTPE-U Ether based
    • Tubing characteristicsSuitable for energy chains
    • Operating pressure complete temperature range-0.095 MPa ... 0.6 MPa
    • Operating pressure complete temperature range-0.95 bar ... 6 bar
    • Operating pressure complete temperature range-13.775 psi ... 87 psi
    • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
    • Temperature-dependent operating pressure-0.95 bar ... 10 bar
    • Temperature-dependent operating pressure-13.775 psi ... 145 psi
    • Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C
    • ApprovalGerman Technical Control Board (TÜV)
    • Certificate issuing authorityB 013277 0527 00
    • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
    • Fire test materialUL94 HB
    • LABS (PWIS) conformityVDMA24364-B2-L
    • Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
    • Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
    • Suitable for use with foodSee supplementary material information
    • Ambient temperature-35 °C ... 60 °C
    • Product weight according to length0.0465 kg/m
    • Pneumatic connectionFor push-in connector O.D. 10 mm
    • ColourBlue
    • Shore hardnessD 52 +/-3
    • Note on materialsRoHS-compliant
    • Material tubingTPE-U(PU)
