Main function
Sensor (Temperature)
Product series / family name

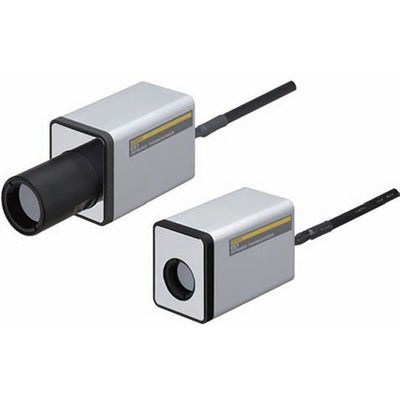

ES1-N series
Functions
Infrared (IR) non-contact temperature thermosensor
Design
thermopile element
non-contact optical sensing
Supply voltage (DC)
12Vdc-24Vdc
Sensing distance
100mm (8mm target dia.)
Connection type
2m pigtail with connector and bare end flying leads
USB pwr. connector
Analog outputs
1 x analog output (4-20mA)
Measurement accuracy
USB output within +/-(-8%rdg+1)°C (Measurement temperature -50 to 0°C); within +/-1°C (0 to 200°C); within +/-0.5%rdg°C (200 to 500°C)
current output (+/-0.1% of output range) °C or less
Ambient air temperature for operation
0...+55 °C
Ambient air temperature for storage
-25...+55 °C
Current consumption
30mA (at 24Vdc)
Order code / Manufacturer SKU
ES1-LP10-N
ES1LP10N
Manufacturer product status
Commercialized
Compliant with standard(s)
CE marking
KC
FCC
RCM
Benefits
Measure workpieces without physical contact non-damaging; sanitary and efficient temperature management
Measurement temperature -50 to 500°C and -50 to 1000°C types are available.
High accuracy and fast measurement with +/-0.5°C reproducibility and a 0.14-second (95%) response time.
You can use the ES1-TOOLS dedicated software (free download from our website) as a setting tool to monitor temperature and change the emissivity; moving average function and output range.
Full lineup of laser pointer types.
