| Product Number |
EX-L211 |
| Part Number |
EX-L211 |
| Products Name |

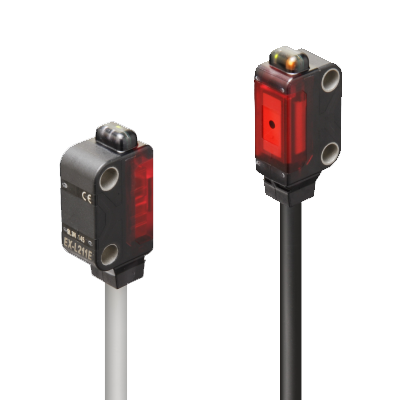

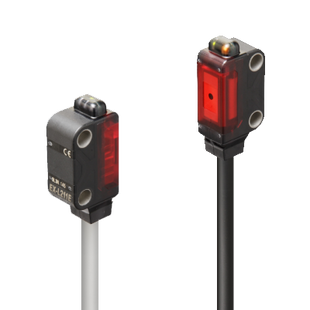

Amplifier Built-in Ultra-compact Laser Sensor |
| Product details |
Thru-beam type |
| The price of the product |
Please contact our office |
| Applicable regulations and certifications |
CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), FDA Regulations, Chinese Standard GB 7247.1 |
| Sensing range |
1 m 3.281 ft
|
| Emission spot size (Typical) |
Approx. 6 × 4 mm 0.236 × 0.157 in (vertical × horizontal)
(at a sensing distance of 1 m) |
| Sensing object |
Opaque object of ø2 mm ø0.079 in or more |
| Minimum sensing object (Typical) |
Opaque object of ø0.3 mm ø0.012 in
(Note)Typical values when the sensitivity adjuster is optimally adjusted. |
| Repeatability |
Perpendicular to sensing axis: 0.05 mm 0.0020 in or less |
| Repeatability (Typical)(perpendicular to sensing axis) |
0.01 mm 0.0004 in or less
(all area)
(Note)Typical values when the sensitivity adjuster is optimally adjusted. |
| Supply voltage |
12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption |
Emitter: 10 mA or less
Receiver: 10 mA or less |
| Output |
NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 26.4 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current) |
| Output:Output operation |
Light-ON / Dark-ON selectable by the output operation switching input |
| Output:Short-circuit protection |
Incorporated (short-circuit protection / inverse polarity protection) |
| Response time |
0.5 ms or less |
| Operation indicator |
Orange LED (lights up when the output is ON) (incorporated on the receiver for thru-beam type) |
| Stability indicator |
Green LED (lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type) |
| Power indicator |
Green LED (lights up when the power is ON) (incorporated on the emitter) |
| Sensitivity adjuster |
Continuously variable adjuster (incorporated on the receiver) |
| Protection |
IP67 (IEC) |
| Ambient temperature |
-10 to +55 ℃ +14 to +131 ℉ (No dew condensation or no icing condition),
Storage: -30 to +70 ℃ -22 to +158 ℉
|
| Ambient humidity |
35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance |
Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability |
1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance |
20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance |
10 to 500 Hz frequency, 1.5 mm 0.059 in double amplitude (10 G max.) in X, Y and Z directions for two hours each |
| Shock resistance |
500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting element |
Red semiconductor laser Class 1 (IEC/EN/JIS/GB/KS/FDA)
(Note : This product complies with the FDA regulations (FDA 21 CFR 1040.10 and 1040.11) in accordance with FDA Laser Notice No. 56, except for complying with IEC 60825-1 Ed. 3.)
(Maximum output: 1ｍW, Peak emission wavelength: 655 nm 0.026 mil) |
| Material |
Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate |
| Cable |
0.15 mm2 4-core (emitter of a thru-beam type: 2-core) cabtyre cable, 2 m 6.562 ft long |
| Cable extension |
Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable (thru-beam type: Total 100 m 328.084 ft both emitter and receiver). |
| Weight |
Net weight: Emitter: 40 g approx., Receiver: 40 g approx.,
Gross weight: 90 g approx. |
| Accessory |
MS-EXL2-2 (Mounting plate): 2 pcs. |
