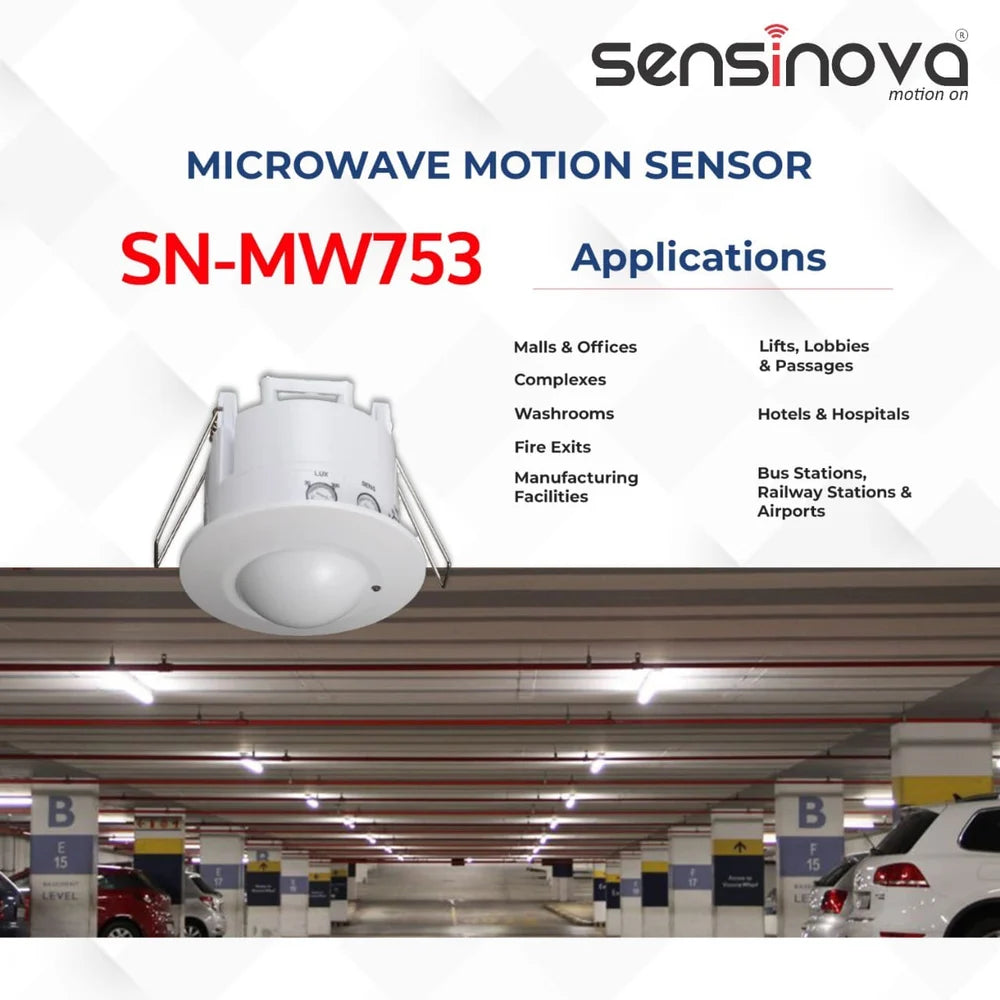

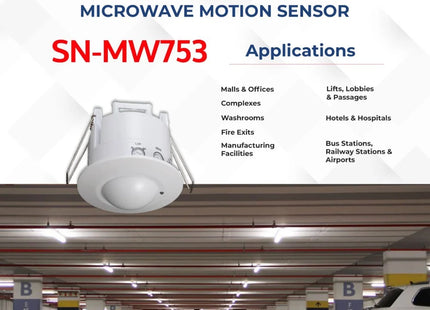

SN-MW753 is a new energy-saving switch. It adopts microwave sensor mould with high frequency electro-magnetic wave (5.8GHz) and integrated circuit. It gathers automation, convenience, safety, energy-saving and practicle functions. It works by receiving object motion. When one enters the detection field, it can switch the load at once and identify automatically day and night. Its installation is very convenient and has wide usage. Thsi sensor can detect motion through doors, panes of glass and thin walls, plywood, POP and other mon-metalic sheets.
FUNCTION
Can identify Day & Night: User can adjust working state in different ambient light. It can work in day time and at night when it is adjusted on the "SUN" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "MOON" position (min).
Time-delay is added continuously: When it receives the second induction signal within the first induction, it will restart to time from that moment.
Time Delay is adjustable. It can be set according to user's desire. The minimum time is 10Sec+/-3Sec. The maximum is 12min +/-1min.
SENS Adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 2m and high sensitivity could be 16m which fits for large room.
