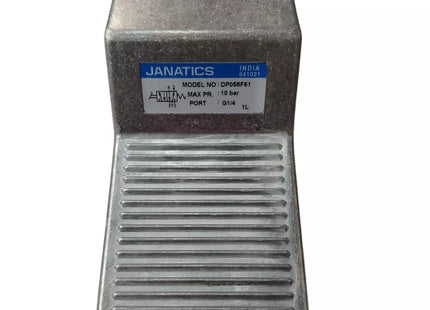

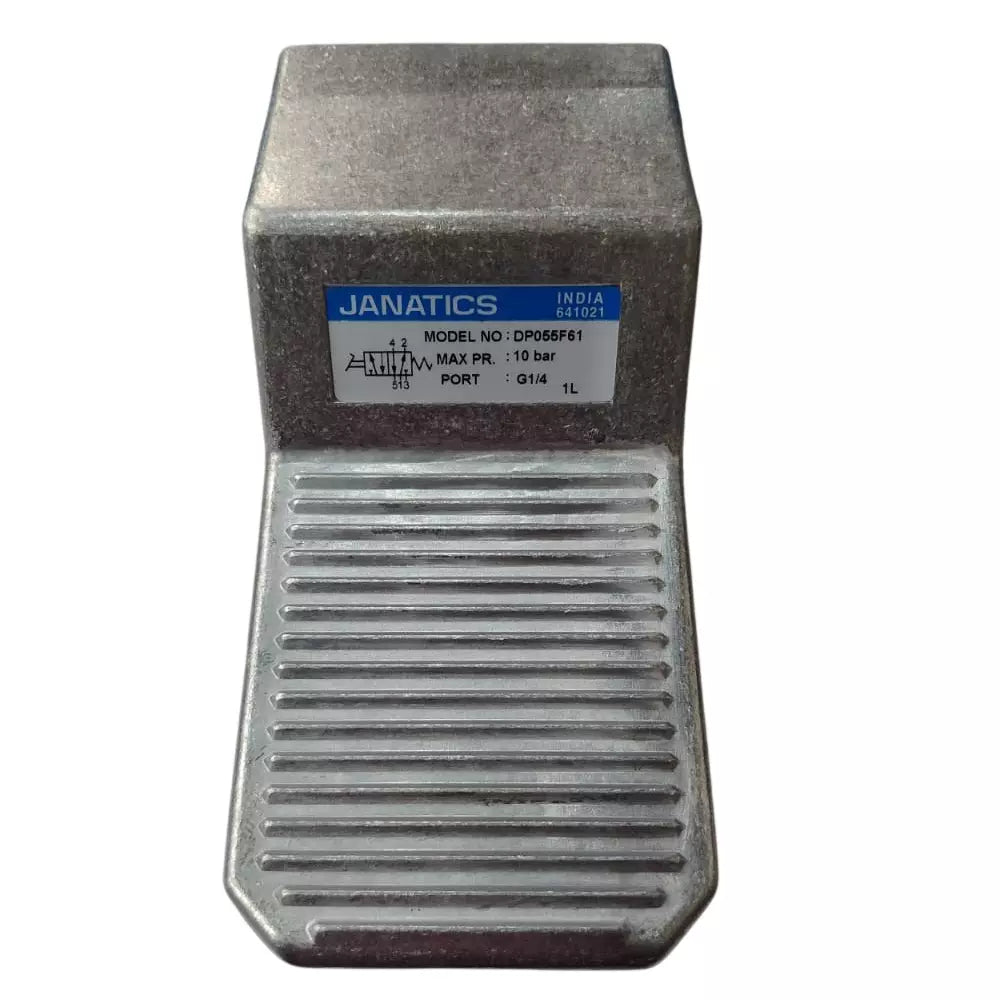

Name: MODEL- FOOT VALVE JANATICS
Brand: Industry Baba
Price: 1485.0 INR
Availability: InStock

MODEL- FOOT VALVE JANATICS

Description

Size	1/4 Inch
Type of Product	Foot Pedal Valve
Model No	Dp055F61
Applicable Temperature	5? - 60? C
Working Medium	Compressed Air
Features	1) Valve - Poppet type - High reliability - High response - Compact size - Long life 2) Foot pedal - Pressure die cast pedal - Convenient to operate without physical strain - Spring return type - Lock provided
Port size	6.35 mm
Size (mm)	6.35 mm
Operating Pressure Range (Bar)	0-10 Bar
Application	These valves are used as directional control valves to operate pneumatic cylinders (single or double acting)
Flow (L/min)	550
Medium Temperature	5? - 60? C
Country of Origin	India
Name of Manufacturer/Packer/Importer	Janatics India Pvt ltd

Product form

Size 1/4 Inch Type of Product Foot Pedal Valve Model No Dp055F61 Applicable Temperature 5? - 60? C Working Medium... Read more

Rs. 1,485.00 Excl. VAT

Size	1/4 Inch
Type of Product	Foot Pedal Valve
Model No	Dp055F61
Applicable Temperature	5? - 60? C
Working Medium	Compressed Air
Features	1) Valve - Poppet type - High reliability - High response - Compact size - Long life 2) Foot pedal - Pressure die cast pedal - Convenient to operate without physical strain - Spring return type - Lock provided
Port size	6.35 mm
Size (mm)	6.35 mm
Operating Pressure Range (Bar)	0-10 Bar
Application	These valves are used as directional control valves to operate pneumatic cylinders (single or double acting)
Flow (L/min)	550
Medium Temperature	5? - 60? C
Country of Origin	India
Name of Manufacturer/Packer/Importer	Janatics India Pvt ltd
