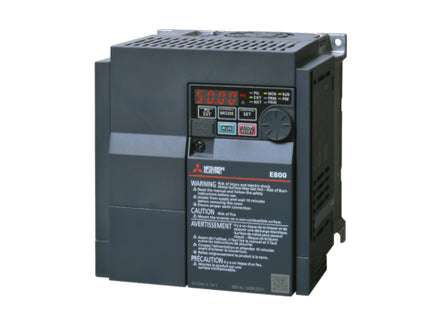

MODEL- FR-E840-0095-460 (5HP)

Description

FA-Inverter: Inverter

Series FR-E800 SERIES
Type FR-E800 RS485 INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 480
Max. Permissible Voltage (V) 528
Current Type AC
Phases 3
Rated Output Current LD (A) 11,1
Rated Output Current ND (A) 9,5
Rated Motor Capacity LD (kW) 5,5
Rated Motor Capacity ND (kW) 3,7
Frequency Range (Hz) 0,2–590
Control Method V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type INDUCTION MOTOR, PM MOTOR
Brake Chopper ED (%) 100
Integrated EMC Filter NO
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display BUILT-IN
Display Type 4 DIGITS LED
PLC Function YES
Program Memory 2K
Program Memory Unit STEPS
Integrated Digital Inputs 7
Digital Outputs (Transistor) 2
Digital Outputs (Relay) 1
Integrated Analogue Inputs 2
Integrated Analogue Outputs 1
IO Type of Terminal Block SPRING CLAMP
Expandable YES
RS-485 1
USB 1 (MINI B)
Ethernet Port NO
Built-In Network MODBUS-RTU
Leakage Current (mA) 1,2
Power Loss LD (W) 136
Power Loss ND (W) 112
Protection Class IP20

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC COMPLIANT
UKCA COMPLIANT

Product Dimensions & Weight

Width (mm) 140
Height (mm) 150
Depth (mm) 135
Weight (kg) 1,8

Life Cycle

Predecessor 240984
Serial No. on the Box QR1

Campaigns

Selling Status Standard

Product Packaging

Cardboard (g) 315
Other paper (g) 17
Aluminum (g) 0
Steel (g) 0
Styrofoam (g) 0
Other plastic (g) 5
Wood (g) 0
Glass (g) 0
Others (g) 0

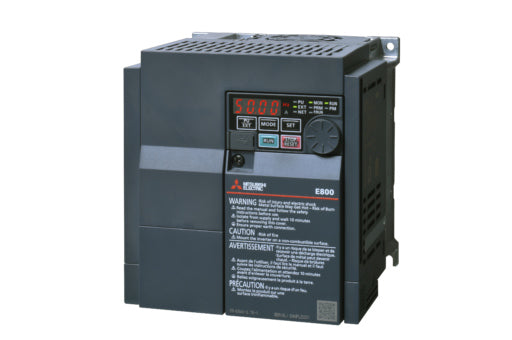

MODEL- FR-E840-0095-460 (5HP)

Product form

FA-Inverter: Inverter Series FR-E800 SERIES Type FR-E800 RS485 INVERTER Minimum Rated Voltage (V) 380 Min. Permissible Voltage (V) 323 Maximum... Read more

Rs. 19,500.00 Excl. VAT

    Description

    FA-Inverter: Inverter

    Series FR-E800 SERIES
    Type FR-E800 RS485 INVERTER
    Minimum Rated Voltage (V) 380
    Min. Permissible Voltage (V) 323
    Maximum Rated Voltage (V) 480
    Max. Permissible Voltage (V) 528
    Current Type AC
    Phases 3
    Rated Output Current LD (A) 11,1
    Rated Output Current ND (A) 9,5
    Rated Motor Capacity LD (kW) 5,5
    Rated Motor Capacity ND (kW) 3,7
    Frequency Range (Hz) 0,2–590
    Control Method V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
    Motor Type INDUCTION MOTOR, PM MOTOR
    Brake Chopper ED (%) 100
    Integrated EMC Filter NO
    Safe Torque Off (STO) YES
    Regenerative (4Q) NO
    Integrated DC Choke NO
    Display BUILT-IN
    Display Type 4 DIGITS LED
    PLC Function YES
    Program Memory 2K
    Program Memory Unit STEPS
    Integrated Digital Inputs 7
    Digital Outputs (Transistor) 2
    Digital Outputs (Relay) 1
    Integrated Analogue Inputs 2
    Integrated Analogue Outputs 1
    IO Type of Terminal Block SPRING CLAMP
    Expandable YES
    RS-485 1
    USB 1 (MINI B)
    Ethernet Port NO
    Built-In Network MODBUS-RTU
    Leakage Current (mA) 1,2
    Power Loss LD (W) 136
    Power Loss ND (W) 112
    Protection Class IP20

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT

    Product Dimensions & Weight

    Width (mm) 140
    Height (mm) 150
    Depth (mm) 135
    Weight (kg) 1,8

    Life Cycle

    Predecessor 240984
    Serial No. on the Box QR1

    Campaigns

    Selling Status Standard

    Product Packaging

    Cardboard (g) 315
    Other paper (g) 17
    Aluminum (g) 0
    Steel (g) 0
    Styrofoam (g) 0
    Other plastic (g) 5
    Wood (g) 0
    Glass (g) 0
    Others (g) 0
