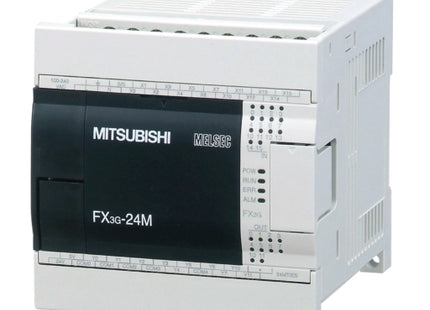

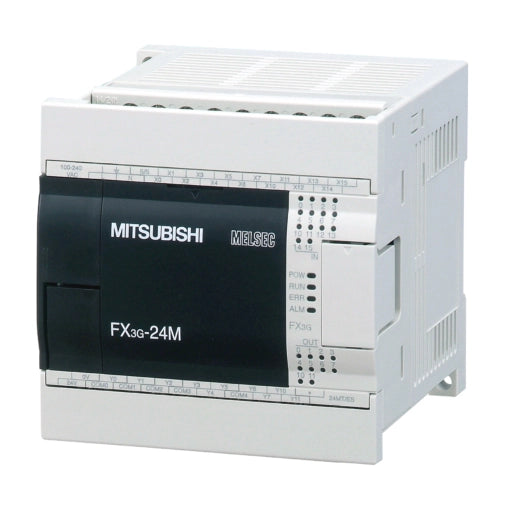

Model-FX3GA-24MR-Make Mitsubishi

Description

FA-COM PLC: Main Unit

Type FX3G
Power Supply (V) 100-240
Current Type AC
Program Memory 32K STEPS
Program Memory Unit EEPROM
Integrated Digital Inputs 14
Integrated Digital Outputs 10
Output Type RELAY
Local I/O Points 128
Local + Remote I/O Points 256
Expandable YES
Cycle Time LD (ns) 210
Cycle Time MOV (ns) 500
USB 1
RS-422 1
Power Consumption (W) 32
Buffer Battery OPTION
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
Series MELSEC-F SERIES

Product Dimensions & Weight

Width (mm) 90
Height (mm) 90
Depth (mm) 86
Weight (kg) 0,55

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC NON-COMPLIANT
Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
UKCA COMPLIANT

Model-FX3GA-24MR-Make Mitsubishi

Product form

FA-COM PLC: Main Unit Type FX3G Power Supply (V) 100-240 Current Type AC Program Memory 32K STEPS Program Memory Unit... Read more

Rs. 18,408.00 Excl. VAT

  • Shipped today? Order within: Jul 03, 2026 17:00:00 -0400

    Description

    FA-COM PLC: Main Unit

    Type FX3G
    Power Supply (V) 100-240
    Current Type AC
    Program Memory 32K STEPS
    Program Memory Unit EEPROM
    Integrated Digital Inputs 14
    Integrated Digital Outputs 10
    Output Type RELAY
    Local I/O Points 128
    Local + Remote I/O Points 256
    Expandable YES
    Cycle Time LD (ns) 210
    Cycle Time MOV (ns) 500
    USB 1
    RS-422 1
    Power Consumption (W) 32
    Buffer Battery OPTION
    Protection Class IP10
    Min. Ambient Temperature (°C) 0
    Max. Ambient Temperature (°C) 55
    Series MELSEC-F SERIES

    Product Dimensions & Weight

    Width (mm) 90
    Height (mm) 90
    Depth (mm) 86
    Weight (kg) 0,55

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC NON-COMPLIANT
    Shipping Approvals ABS,BV,DNV GL,KR,LR,NK,RINA
    UKCA COMPLIANT
