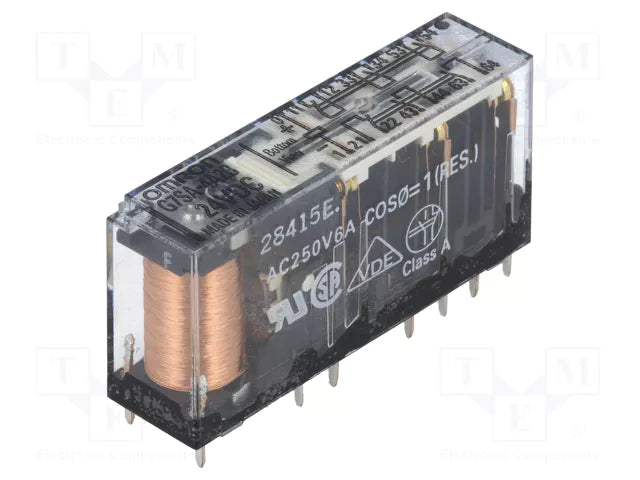

MODEL- G7SA-4A2B RELAY 24VDC MAKE OMRON

Description

Specification

Manufacturer
 OMRON
Type of relay
 electromagnetic
Contacts configuration
SPST-NO x4 + SPST-NC x2
Rated coil voltage
 24V DC
Contact current max.
 6A
AC contacts rating @R(at resistive load)
6A / 250V AC
DC contacts rating @R(at resistive load)
6A / 30V DC
Manufacturer series
 G7SA-14
Switched voltage
 max. 125V DC, max. 250V AC
Relay variant
 safety
Mounting
 PCB, socket
Coil resistance
 1152Ω
Body dimensions
 50x13x24mm
Contact resistance
 100mΩ
Terminal pitch
 5.08mm
Coil current
 20.8mA
Operating temperature
 -40...85°C

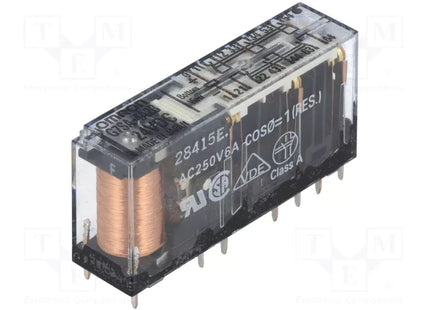

MODEL- G7SA-4A2B RELAY 24VDC MAKE OMRON

Product form

Specification Show similar products (12,337) Manufacturer OMRON Type of relay electromagnetic Contacts configuration SPST-NO x4 + SPST-NC x2 Rated coil... Read more

Rs. 2,000.00 Excl. VAT

    Description

    Specification

    Manufacturer
    		 OMRON
    Type of relay
    		 electromagnetic
    Contacts configuration
    		SPST-NO x4 + SPST-NC x2
    Rated coil voltage
    		 24V DC
    Contact current max.
    		 6A
    AC contacts rating @R(at resistive load)
    		6A / 250V AC
    DC contacts rating @R(at resistive load)
    		6A / 30V DC
    Manufacturer series
    		 G7SA-14
    Switched voltage
    		 max. 125V DC, max. 250V AC
    Relay variant
    		 safety
    Mounting
    		 PCB, socket
    Coil resistance
    		 1152Ω
    Body dimensions
    		 50x13x24mm
    Contact resistance
    		 100mΩ
    Terminal pitch
    		 5.08mm
    Coil current
    		 20.8mA
    Operating temperature
    		 -40...85°C
