| Standard product |

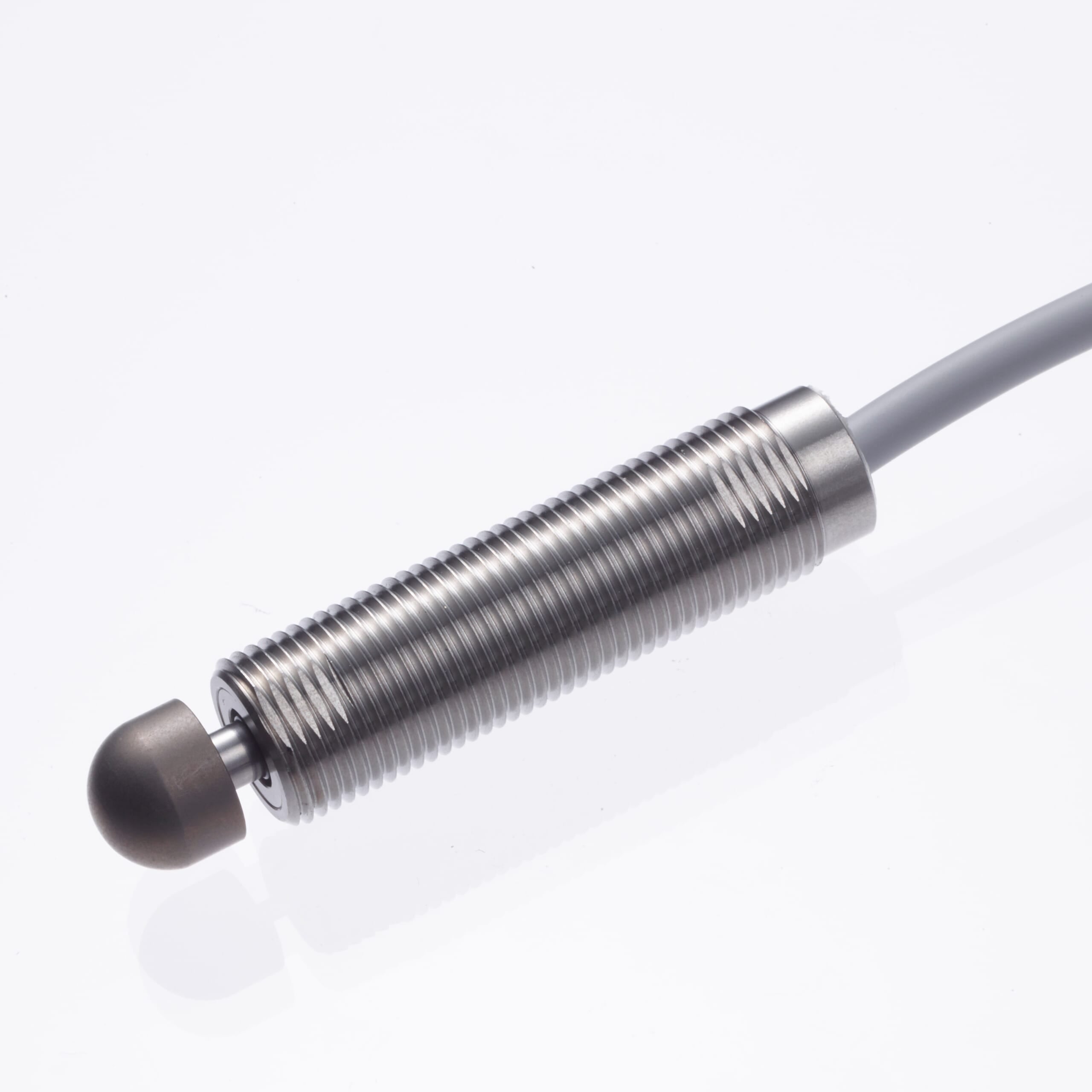

CSH121A-AL |
| Contact structure |
Dry contact |
| Output mode |
A:NO |
| IP code / protective structure |
IP65 |
| With / without LED |
with LED |
| Repeatability |
5μm |
| Movement differential (mm) |
0 |
| Overall length |
54.5mm |
| Outer diameter |
M12×1 |
| End shape |
Round shape |
| Shape of contacting part |
Sφ10 hemisphere SR5 |
| Stroke
|
2.8mm |
| Pretravel |
About 0.3mm |
| How to use |
Straight / Angled |
| Contact force
|
1.5N (axial direction） |
| Case material |
SUS303 |
| Contact material |
SUS HRC40-50 |
| Bearing, type |
Ball bearing type |
| Cable type |
Cabtyre cable |
| Cable specifications |
Standard length 2m Oil resistant φ4 / 2 cores,Tensile strength 30N, minimum bending R7 |
| Cable direction |
Straight |
| Standard accessory |
Two fixing nuts |
| Contact life time |
10 million |
| Operating temperature range |
0°C-80°C (ice-free) |
| Temperature drift |
No temperature drift due to self-generation. |
| Oscillation |
10-55Hz total amplitude 1.5 for X,Y,Z each direction |
| Impact |
300m/s2 for X,Y,Z each direction |
| Contact rating |
DC5V - DC24V Steady Current: 10 mA or less (Rush Current: 20 mA or less)
Limit the LED forward current below 10mA. |
