Primary brand
Mitsubishi Electric
Main function

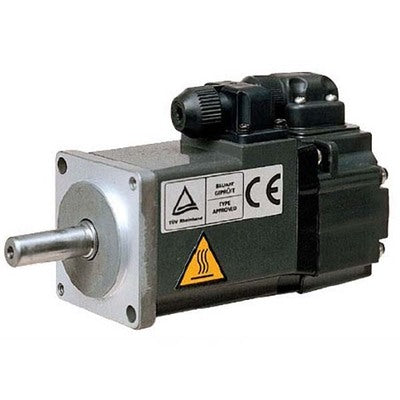

AC servo motor
Product series / family name
MELSERVO J3 series
Sub-range name
HF-KP series
Functions
AC brushless rotary servo motor
Design
straight shaft
built-in absolute feedback encod. (18-bit)
low inertia / small power capacity
natural cooling
Supply voltage (AC)
200Vac class
Rated active power (kW)
200W / 0.2kW
Rotational speed
3000rpm
6000rpm (maximum)
Moment of inertia
0.000024kg.m2 (0.24kg.cm2)
Mounting mode
60x60mm flange mounting
Degree of protection
IP65
Dimensions
H77.1mm x W60mm x D106.6mm
Ambient air temperature for operation
0...+40 °C
Ambient air temperature for storage
-15°C...+70 °C
Order code / Manufacturer SKU
HF-KP23
Manufacturer product status
Discontinued
Benefits
taking advantage of the characteristics of a servo motor such as smallness and high-output
this motor serves as a compact and high-output spindle motor which is capable of high-speed rotation 6000rpm
