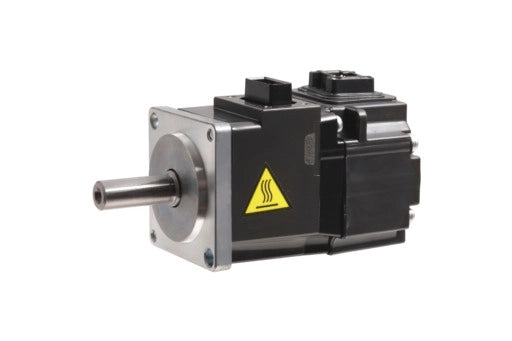

Model-HG-KR13-Make Mitsubishi

Description

FA-Servo-Motion: Servo Motor

Series MELSERVO-J4
Type HG-KR
Power Supply (V) 200
Rated Capacity (kW) 0,1
Inertia LOW INERTIA
Rated Torque (Nm) 0,32
Maximum Torque (Nm) 1,1
Rated Speed (rpm) 3000
Maximum Speed (rpm) 6000
Inertia (kg*cm2) 0,0777
Brake NO
Shaft Type STRAIGHT SHAFT
Protection Class IP65
Current Type AC
Encoder Type 22-BIT
Encoder Resolution (p/rev) 4194304

Product Dimensions & Weight

Width (mm) 40
Height (mm) 41,7
Depth (mm) 82,4
Weight (kg) 0,54

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC COMPLIANT
UKCA COMPLIANT

Model-HG-KR13-Make Mitsubishi

Product form

FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-KR Power Supply (V) 200 Rated Capacity (kW) 0,1 Inertia LOW INERTIA Rated Torque... Read more

Rs. 16,997.90 Excl. VAT

    Description

    FA-Servo-Motion: Servo Motor

    Series MELSERVO-J4
    Type HG-KR
    Power Supply (V) 200
    Rated Capacity (kW) 0,1
    Inertia LOW INERTIA
    Rated Torque (Nm) 0,32
    Maximum Torque (Nm) 1,1
    Rated Speed (rpm) 3000
    Maximum Speed (rpm) 6000
    Inertia (kg*cm2) 0,0777
    Brake NO
    Shaft Type STRAIGHT SHAFT
    Protection Class IP65
    Current Type AC
    Encoder Type 22-BIT
    Encoder Resolution (p/rev) 4194304

    Product Dimensions & Weight

    Width (mm) 40
    Height (mm) 41,7
    Depth (mm) 82,4
    Weight (kg) 0,54

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT
