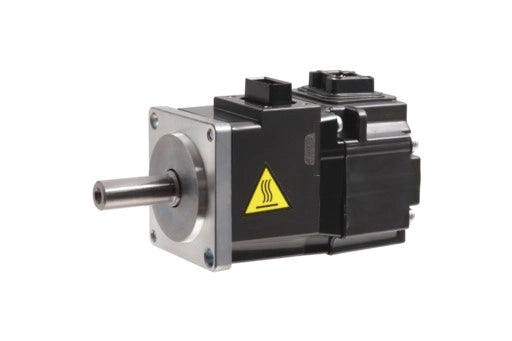

MODEL-HGKR23B-MAKE MITSUBISHI

Description

FA-Servo-Motion: Servo Motor

Series MELSERVO-J4
Type HG-KR
Power Supply (V) 200
Rated Capacity (kW) 0,2
Inertia LOW INERTIA
Rated Torque (Nm) 0,64
Maximum Torque (Nm) 2,2
Rated Speed (rpm) 3000
Maximum Speed (rpm) 6000
Inertia (kg*cm2) 0,243
Brake YES
Shaft Type STRAIGHT SHAFT
Protection Class IP65
Current Type AC
Encoder Type 22-BIT
Encoder Resolution (p/rev) 4194304

Product Dimensions & Weight

Width (mm) 60
Height (mm) 77,1
Depth (mm) 113,4
Weight (kg) 1,3

Conformity

CE COMPLIANT
UL/cUL COMPLIANT
EAC COMPLIANT
UKCA COMPLIANT

MODEL-HGKR23B-MAKE MITSUBISHI

Product form

FA-Servo-Motion: Servo Motor Series MELSERVO-J4 Type HG-KR Power Supply (V) 200 Rated Capacity (kW) 0,2 Inertia LOW INERTIA Rated Torque... Read more

Rs. 29,405.00 Excl. VAT

    Description

    FA-Servo-Motion: Servo Motor

    Series MELSERVO-J4
    Type HG-KR
    Power Supply (V) 200
    Rated Capacity (kW) 0,2
    Inertia LOW INERTIA
    Rated Torque (Nm) 0,64
    Maximum Torque (Nm) 2,2
    Rated Speed (rpm) 3000
    Maximum Speed (rpm) 6000
    Inertia (kg*cm2) 0,243
    Brake YES
    Shaft Type STRAIGHT SHAFT
    Protection Class IP65
    Current Type AC
    Encoder Type 22-BIT
    Encoder Resolution (p/rev) 4194304

    Product Dimensions & Weight

    Width (mm) 60
    Height (mm) 77,1
    Depth (mm) 113,4
    Weight (kg) 1,3

    Conformity

    CE COMPLIANT
    UL/cUL COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT
