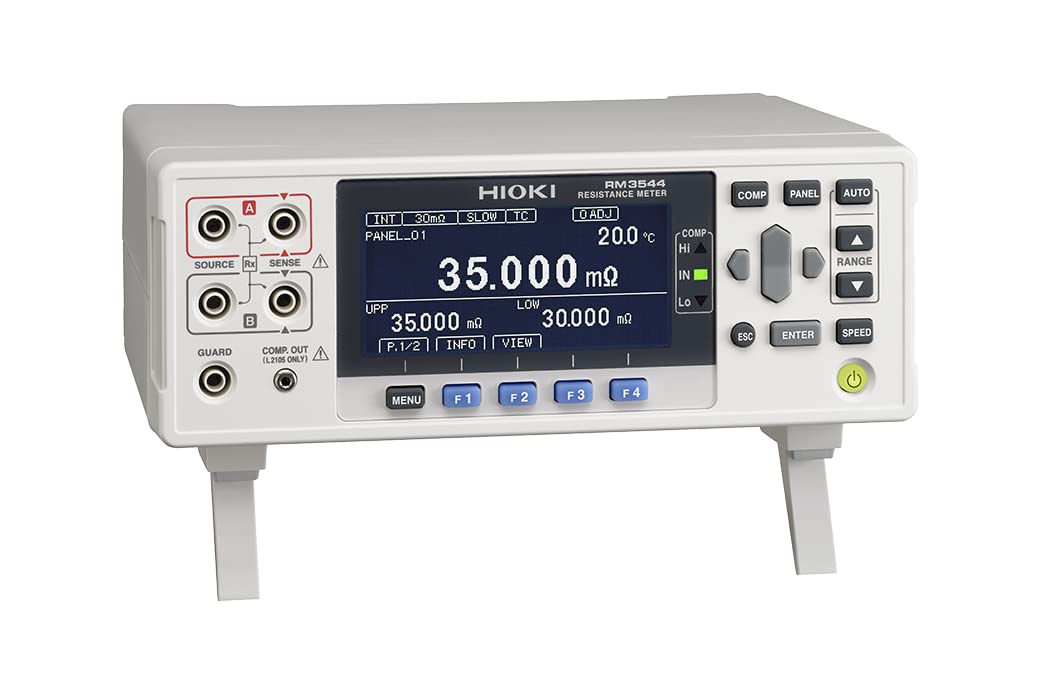

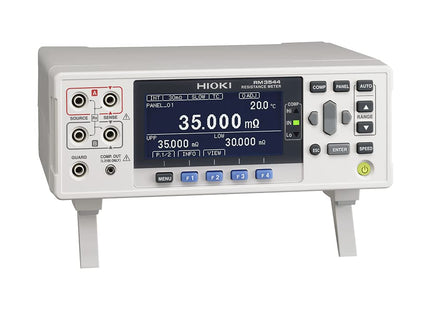

MODEL-HIOKI JAPAN MAKE RESISTANCE METER MODEL NO RM3544-01 INCLUDED ACCESSORIES

Description

About this item

  • EXT I/O interface with NPN/PNP support can accommodate a variety of automated production lines
  • 0.02 % basic accuracy, 1 ?Ohm max. resolution, 300 mA max. measurable current
  • Measure from 0.000 m-Ohm (testing current 300 mA) to 3.5 M-Ohm
  • Probe for guard jack use and increased measurement current yield an instrument that’s more resistant to noise
  • Optional LED COMPARATOR ATTACHMENT and high-volume judgment tones combine to ensure PASS/FAIL judgments are communicated reliably in the noisy environment of the production floor
  • Resistance range30 mΩ (35.000 mΩ display max., 1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display max., 100 Ω resolution), 9 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
  • Communication interfaces : RM3544-01 : Select from RS-232C, Printer (RS-232C), or USB Remote function, communications monitor function, data output function

MODEL-HIOKI JAPAN MAKE RESISTANCE METER MODEL NO RM3544-01 INCLUDED ACCESSORIES

Product form

Brand Generic Power Source Corded Electric Item Weight 1 Kilograms Item dimensions L x W x H 35.6 x 27.9... Read more

Rs. 52,400.00 Excl. VAT

    Description

    About this item

    • EXT I/O interface with NPN/PNP support can accommodate a variety of automated production lines
    • 0.02 % basic accuracy, 1 ?Ohm max. resolution, 300 mA max. measurable current
    • Measure from 0.000 m-Ohm (testing current 300 mA) to 3.5 M-Ohm
    • Probe for guard jack use and increased measurement current yield an instrument that’s more resistant to noise
    • Optional LED COMPARATOR ATTACHMENT and high-volume judgment tones combine to ensure PASS/FAIL judgments are communicated reliably in the noisy environment of the production floor
    • Resistance range30 mΩ (35.000 mΩ display max., 1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display max., 100 Ω resolution), 9 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s.
    • Communication interfaces : RM3544-01 : Select from RS-232C, Printer (RS-232C), or USB Remote function, communications monitor function, data output function
