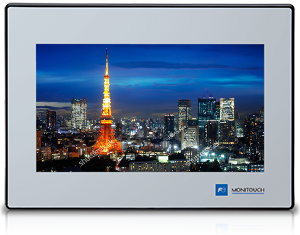

MODEL-HMI MONITOUCH TYPE-TS1070S INPUT 24VDC

Description

Specifications of TS1070S/TS1070Si

Model TS1070S TS1070Si
Main unit specifications Screen size 7.0” widescreen
Display device TFT color
Resolution 800 × 480 dots
Colors 65,536 colors
Backlight LED
Touch screen Analog registive
Certifications CE / KC / UL / cUL
User Memory FROM 26 MB
SRAM 128 KB
External interface specifications COM1
D-Sub 9 pin (female)		 RS-422/RS-485(4-wire/2-wire)
Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bits
Baud rate: 4800,9600,19200,38400,57600,76800,115200,187500*1 bps
COM2/COM3
D-Sub 9 pin (male)		 COM2:RS-232C COM3: RS-422/RS-485(2-wire)
Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bits
Baud rate: 4800,9600,19200,38400,57600,76800,115200 bps
LAN RJ-45 - 1 ch
USB-A 1 ch
USB mini-B 1 ch
Power supply Permissible range of voltage 24 V DC ± 10 %
Power consumption
(max. rating)		 11W or less
Physical environment Ambient temperature 0 to 50°C*2
Ambient humidity 85% RH or lower(non-condensing)*2
Contamination level 2
Operation altitude 2,000 m or less
Atmosphere Not to be exposed to corrosive gas, or conductive dust
Storage ambient temperature -10 to 60°C*2
Storage ambient humidity 85% RH or lower(non-condensing)*2
Installation conditions Protective structure Panel front IP65 equivalent (when using waterproof gasket*3), IP40 equivalent (when not using waterproof gasket*3)
Rear case IP20 equivalent
Dimensions
W × H × D		 198.8 × 141.8 × 38.0 mm
Panel cutout 189.0 × 134.0 (+0.5/-0)mm

MODEL-HMI MONITOUCH TYPE-TS1070S INPUT 24VDC

Product form

Specifications of TS1070S/TS1070Si Model TS1070S TS1070Si Main unit specifications Screen size 7.0” widescreen Display device TFT color Resolution 800 ×... Read more

Rs. 12,500.00 Excl. VAT

  • Shipped today? Order within: Jul 05, 2026 17:00:00 -0400

    Description

    Specifications of TS1070S/TS1070Si

    Model TS1070S TS1070Si
    Main unit specifications Screen size 7.0” widescreen
    Display device TFT color
    Resolution 800 × 480 dots
    Colors 65,536 colors
    Backlight LED
    Touch screen Analog registive
    Certifications CE / KC / UL / cUL
    User Memory FROM 26 MB
    SRAM 128 KB
    External interface specifications COM1
    D-Sub 9 pin (female)    		 RS-422/RS-485(4-wire/2-wire)
    Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bits
    Baud rate: 4800,9600,19200,38400,57600,76800,115200,187500*1 bps
    COM2/COM3
    D-Sub 9 pin (male)    		 COM2:RS-232C COM3: RS-422/RS-485(2-wire)
    Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bits
    Baud rate: 4800,9600,19200,38400,57600,76800,115200 bps
    LAN RJ-45 - 1 ch
    USB-A 1 ch
    USB mini-B 1 ch
    Power supply Permissible range of voltage 24 V DC ± 10 %
    Power consumption
    (max. rating)    		 11W or less
    Physical environment Ambient temperature 0 to 50°C*2
    Ambient humidity 85% RH or lower(non-condensing)*2
    Contamination level 2
    Operation altitude 2,000 m or less
    Atmosphere Not to be exposed to corrosive gas, or conductive dust
    Storage ambient temperature -10 to 60°C*2
    Storage ambient humidity 85% RH or lower(non-condensing)*2
    Installation conditions Protective structure Panel front IP65 equivalent (when using waterproof gasket*3), IP40 equivalent (when not using waterproof gasket*3)
    Rear case IP20 equivalent
    Dimensions
    W × H × D    		 198.8 × 141.8 × 38.0 mm
    Panel cutout 189.0 × 134.0 (+0.5/-0)mm
