Description

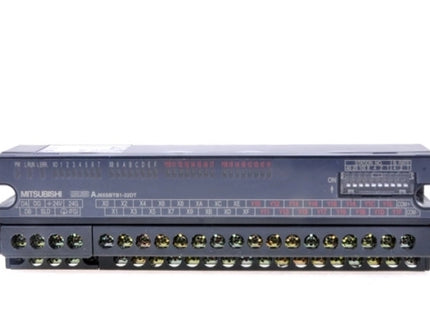

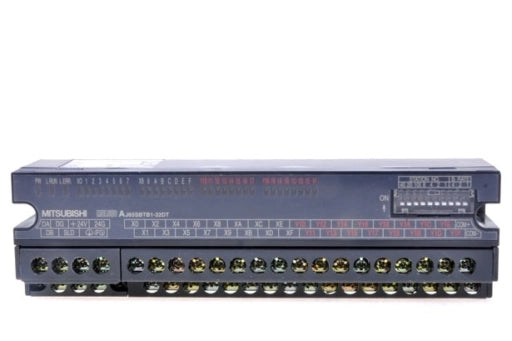

FA-MOD PLC: Digital I/O Module
| Series |
CC-LINK |
| Type |
REMOTE I/O COMBINED MODULE |
| Power Supply (V) |
24 |
| Current Type |
DC |
| Occupied Stations |
1 |
| Integrated Digital Inputs |
16 |
| Integrated Digital Outputs |
16 |
| Rated Input Voltage (VDC) |
24 |
| Rated Load Voltage (VDC) |
24 |
| Output Type |
TRANSISTOR |
| Output Logic |
SINK |
| Wiring |
SCREW |
| Int. Current Consumption (A) |
0,06 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
NON-COMPLIANT |
| UKCA |
COMPLIANT |
Product Dimensions & Weight
| Width (mm) |
179 |
| Height (mm) |
50 |
| Depth (mm) |
40 |
| Weight (kg) |
0,25 |
