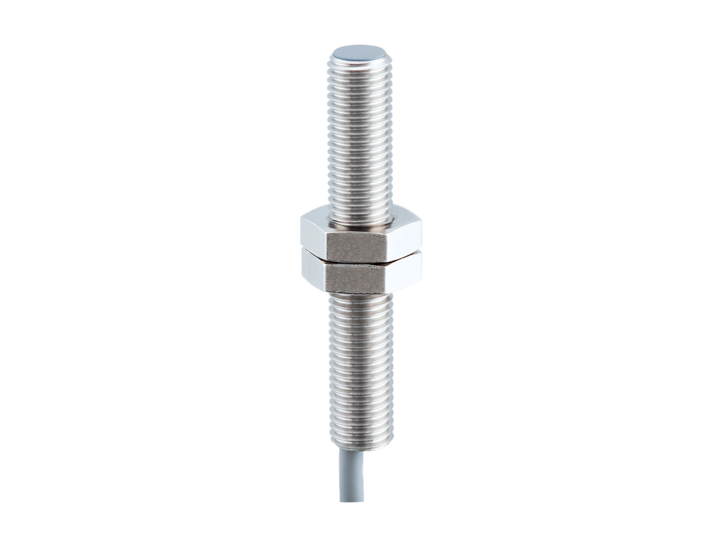

MODEL-IFRM08P17T4 MAKE BAUMER

Description

General data
Mounting type
  • Flush
Special type
  • High temperature
Nominal sensing distance Sn
  • 2 mm
Temperature drift
  • ± 10 % (-25 ... +75 °C)
  • - 10 % / + 15 % (-25 ... +100 °C)
Hysteresis
  • 3 … 20 % of Sr
Electrical data
Switching frequency
  • 5 kHz
Voltage supply range +Vs
  • 6 … 30 VDC
Current consumption max. (no load)
  • 12 mA
Output circuit
  • PNP make function (NO)
Voltage drop Vd
  • <3 VDC
Output current
  • 100 mA
Short circuit protection
  • Yes
Reverse polarity protection
  • Yes
Mechanical data
Design
  • Cylindrical threaded
Material (sensing face)
  • PBT
Housing material
  • Stainless steel
Dimension
  • 8 mm
Housing length
  • 50 mm
Connection types
  • Cable FEP, 1 m
Ambient conditions
Operating temperature
  • -25 … +100 °C
Protection class
  • IP 67

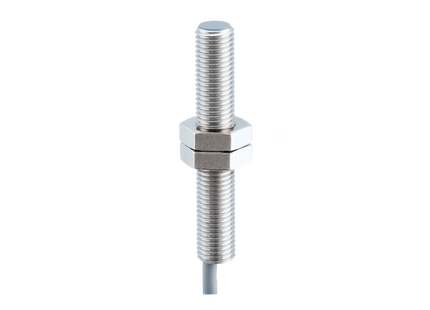

MODEL-IFRM08P17T4 MAKE BAUMER

Product form

General data Mounting type Flush Special type High temperature Nominal sensing distance Sn 2 mm Temperature drift ± 10 %... Read more

Rs. 16,520.00 Excl. VAT

    Description

    General data
    Mounting type
    • Flush
    Special type
    • High temperature
    Nominal sensing distance Sn
    • 2 mm
    Temperature drift
    • ± 10 % (-25 ... +75 °C)
    • - 10 % / + 15 % (-25 ... +100 °C)
    Hysteresis
    • 3 … 20 % of Sr
    Electrical data
    Switching frequency
    • 5 kHz
    Voltage supply range +Vs
    • 6 … 30 VDC
    Current consumption max. (no load)
    • 12 mA
    Output circuit
    • PNP make function (NO)
    Voltage drop Vd
    • <3 VDC
    Output current
    • 100 mA
    Short circuit protection
    • Yes
    Reverse polarity protection
    • Yes
    Mechanical data
    Design
    • Cylindrical threaded
    Material (sensing face)
    • PBT
    Housing material
    • Stainless steel
    Dimension
    • 8 mm
    Housing length
    • 50 mm
    Connection types
    • Cable FEP, 1 m
    Ambient conditions
    Operating temperature
    • -25 … +100 °C
    Protection class
    • IP 67
