LC1D25M7 | TeSys D Contactor – Schneider Electric
Product Description

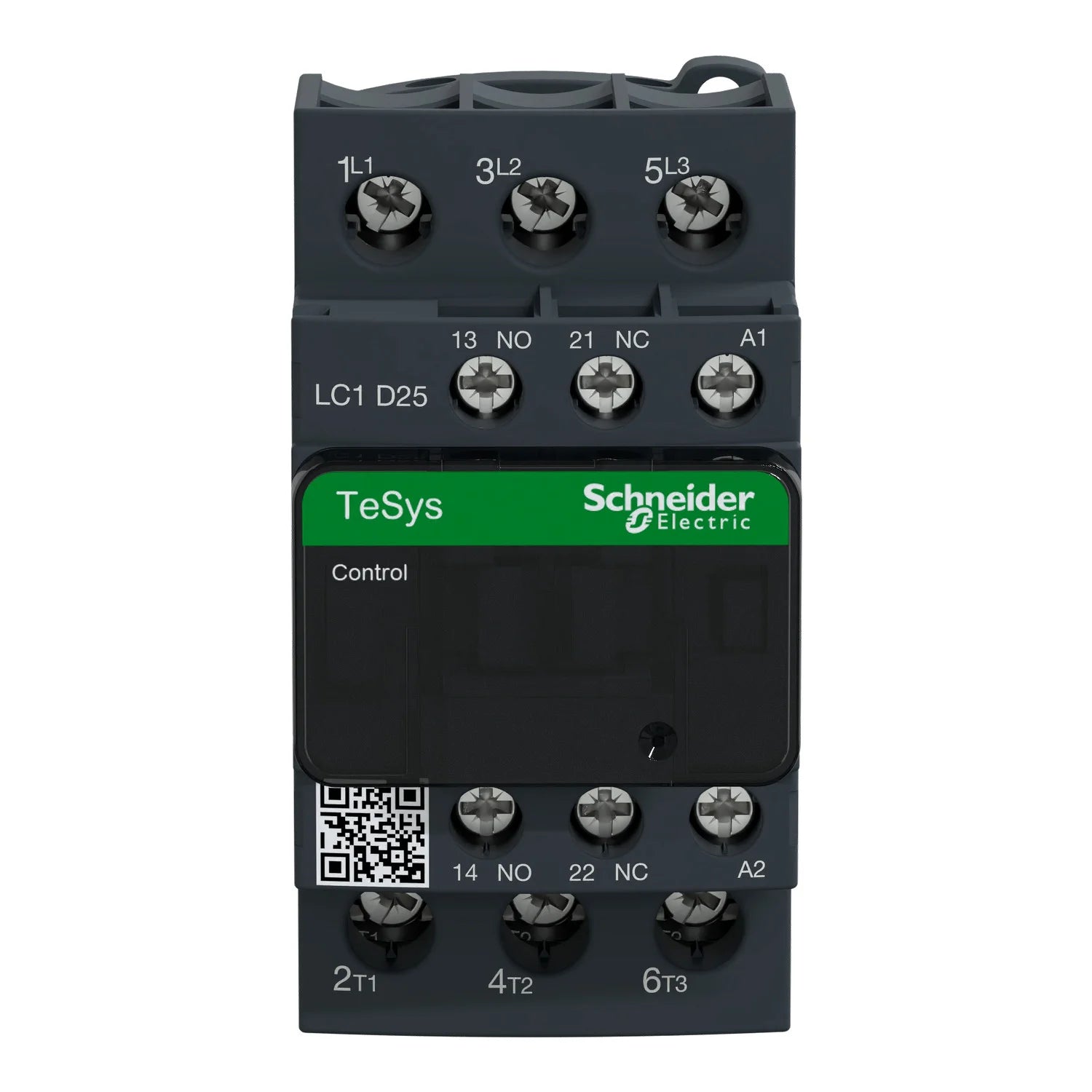

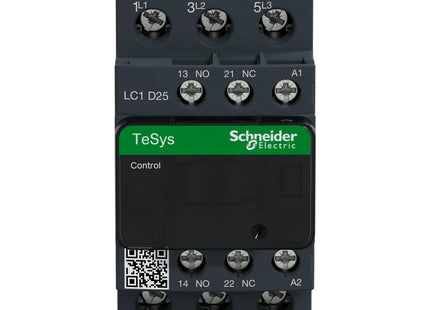

The LC1D25M7 is a TeSys D contactor manufactured by Schneider Electric. It is designed for controlling three-phase motors and other electrical loads. This contactor is part of the TeSys D range, known for its reliability and durability in industrial applications.
Key Features
-
Type: 3P (3 NO) – 3 Pole, 3 Normally Open contacts
-
Rated Current: 25 A
-
Rated Voltage: ≤ 440 V AC
-
Coil Voltage: 220 V AC
-
Utilization Category: AC-3 (for squirrel cage motors: starting, stopping)
-
Mounting: Screw mounting or snap-on mounting on 35 mm DIN rail
-
Mechanical Durability: Up to 10 million operations
-
Electrical Durability: Up to 1 million operations
-
Terminal Type: Screw clamp terminals
-
Dimensions: Compact design for space-saving installation
-
Standards: Complies with IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No. 14 standards
-
Environmental Conditions: Suitable for use in temperatures ranging from -25°C to +60°C
-
Safety Features: Built-in arc suppression for safe operation
Applications
The LC1D25M7 contactor is ideal for use in various industrial and commercial applications, including:
- Motor control in HVAC systems
- Pump and fan control
- Conveyor systems
- Compressors and other heavy-duty machinery
Additional Information
This contactor is part of Schneider Electric’s TeSys D series, which offers a wide range of accessories for enhanced functionality, including auxiliary contacts, thermal overload relays, and mounting kits. The LC1D25M7 is designed for easy installation and maintenance, ensuring long-term reliability and performance.
