Descriotion:

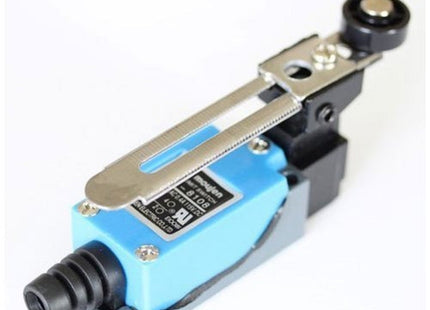

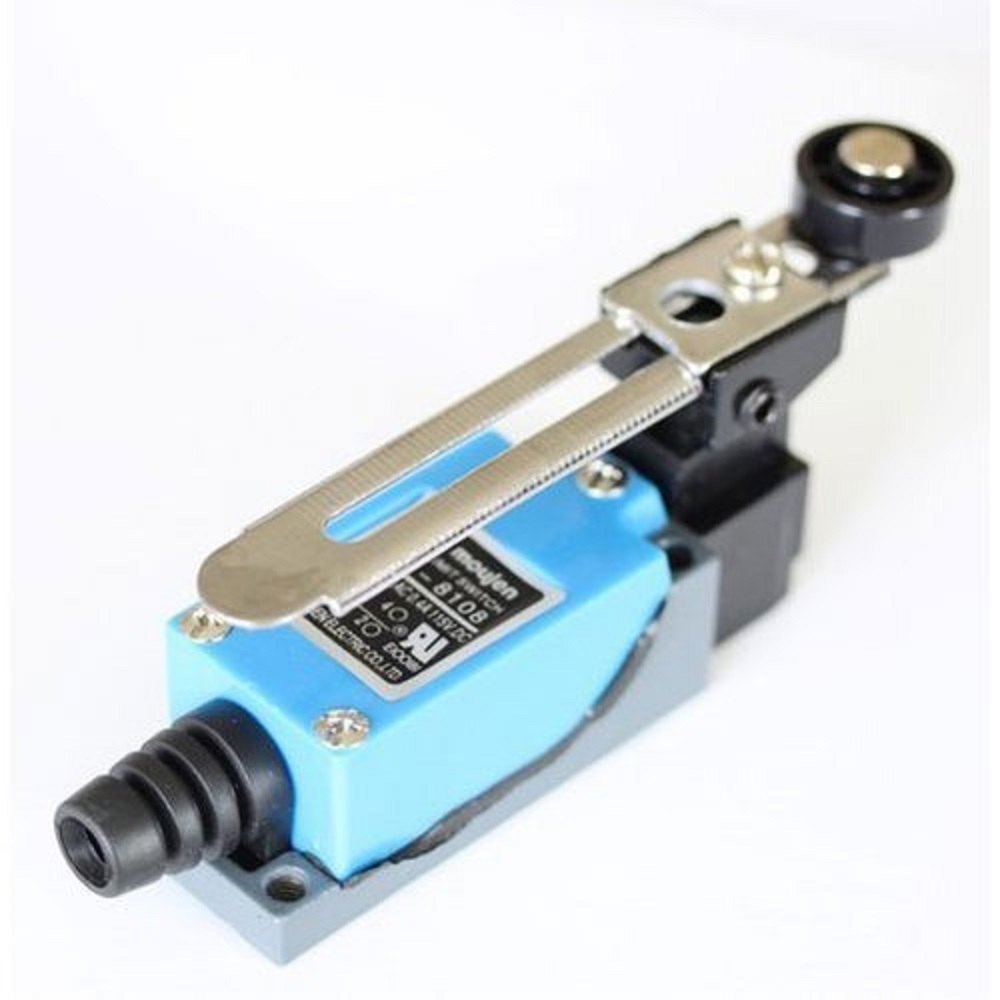

Compact Industrial Limit Switch, Field adjustable/changeable actuator head, 1NO, 1NC Double Break Isolated Contact, 5A, IP65, Vertical Mount
Features:
1. Wide choice of heads and actuators.
2. Variety of operating characteristics.
3. Captive cover screws.
4. Mode of operation is field adjustable.
5. Internal grounding screw.
6. Dustproof,Oil-tight,Water-Resistant.
7. Temperature range +5 to +160
Characteristics
Operating speed
0.5mm to 50m/sec
Operating frequency
Mechanically: 120 operations/min.
Electrically: 30 operations/min.
Contact resistance
15m Ω max. (initial)
Insulation resistance
100M Ω min.(at 500V DC)
Dielectric strength
1000 V AC,50/60 Hz for 1 minute between non-continuous terminals
2000 VAC, 50/60 Hz for 1 minute between each terminal and non-current-carrying metal part and between each terminal and ground
Vibration
Malfunction durability: 10 to 55Hz
1.5mm double amplitude
Shock
Mechanical durability:Approx.1000m/sec2(approx. 100G’s)
Mechanical durability:Approx. 300m/sec2(approx. 30 G’s)
Ambient operating temperature
Operating:-15 to + 70
Humidity
95% RH max
Service life
Mechanically: 10,000,000 operations min
Electrically: 300,000 operations min,(2.5A,110V AC) MAX.
