| Brand |
Honeywell |
| Model No. |
SZL-VL-S-J-N |
| Type |

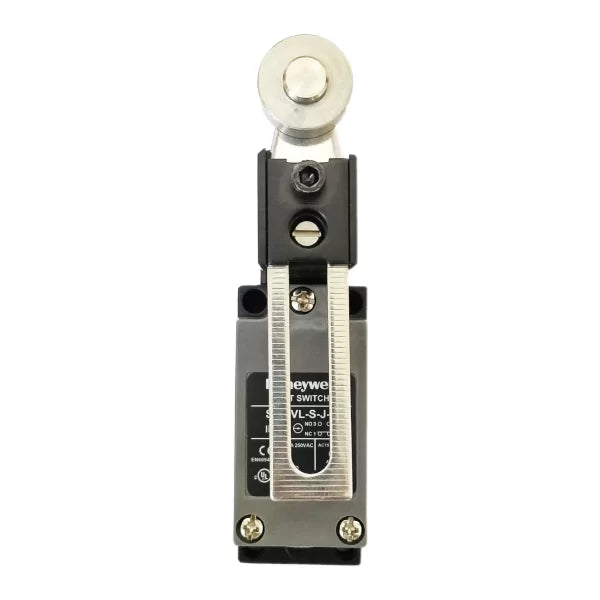

Side rotary, adjustable lever steel roller, Ø18 x 6,5 Miniature industrial limit switch |
| Housing material |
Die-cast metal housing with glass-filled, flame-retardant thermoplastic cover UL 94 flame spread testing: V-0 rated |
| Contact Material |
Silver Alloy |
| Contact design |
Snap-action (all versions)
Positive-opening contacts (side rotary version only)
|
| Electrical Connection |
Conduit entry or cable gland |
| Electrical Ratings |
AC-15 A300
DC-13 Q300
|
| Dielectric Voltage |
1890 Vac for metal housing, 1890 Vac between all terminals to enclosure after durability test |
| Impulse Voltage |
2500 Vdc |
| Thermal current (Ith) |
10 A/250 Vac |
| Leakage Current |
< 10 mA |
| Humidity |
95 %RH |
| Shock |
30 G, conforming to IEC 60068-2-27 |
| Vibration |
10 G, 10 Hz to 55 Hz displacement amplitude 0,75 mm, conforming to IEC 60068-2-6 (wobble excluded) |
| Operating Temperature |
-20°C to 70°C (with no icing) |
| Operating speed |
0,05 mm/s to 2 m/s (based on pin plunger limit switch) |
| Operating frequency |
Mechanical: 120 ops/min; Electrical: 30 ops/min |
| Mechanical life |
10M cycles @ 120 cpm max |
| Electrical life |
0.5M cycles @ 30 cpm max. under the rated resistance load |
| Weight |
120 g to 150 g |
| Approvals |
CCC, CE, cULus |
| Pollution Degree |
3 |
| Environmental Sealing |
IP67 |
| COO |
China |
